MVD B220-3100

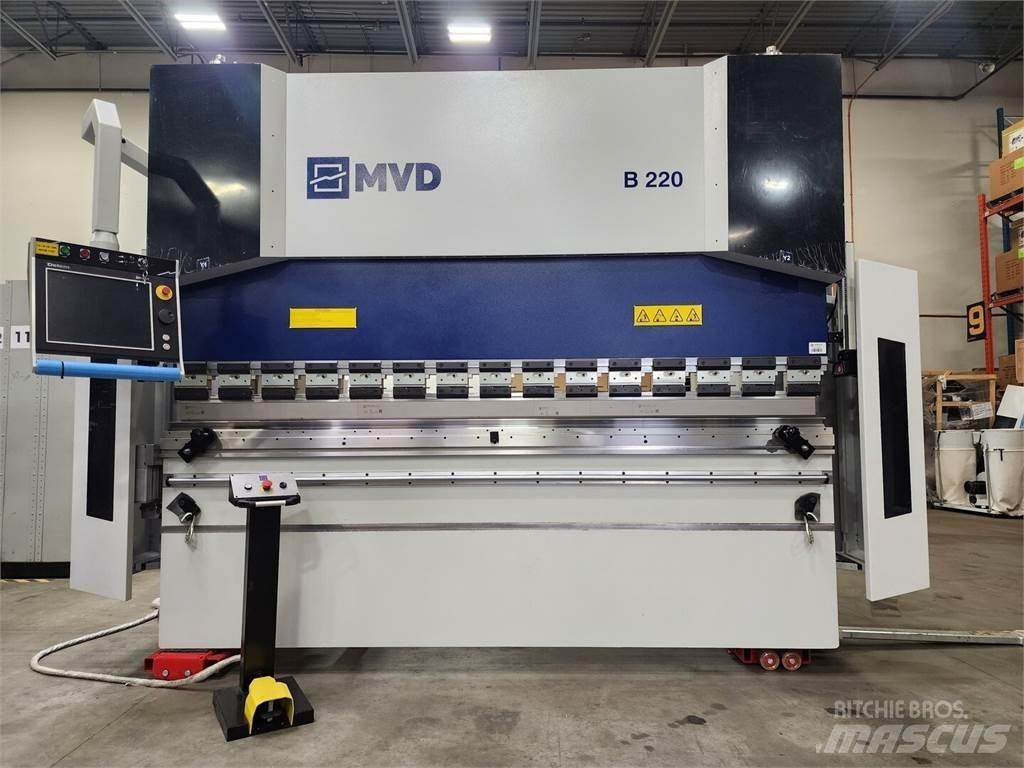

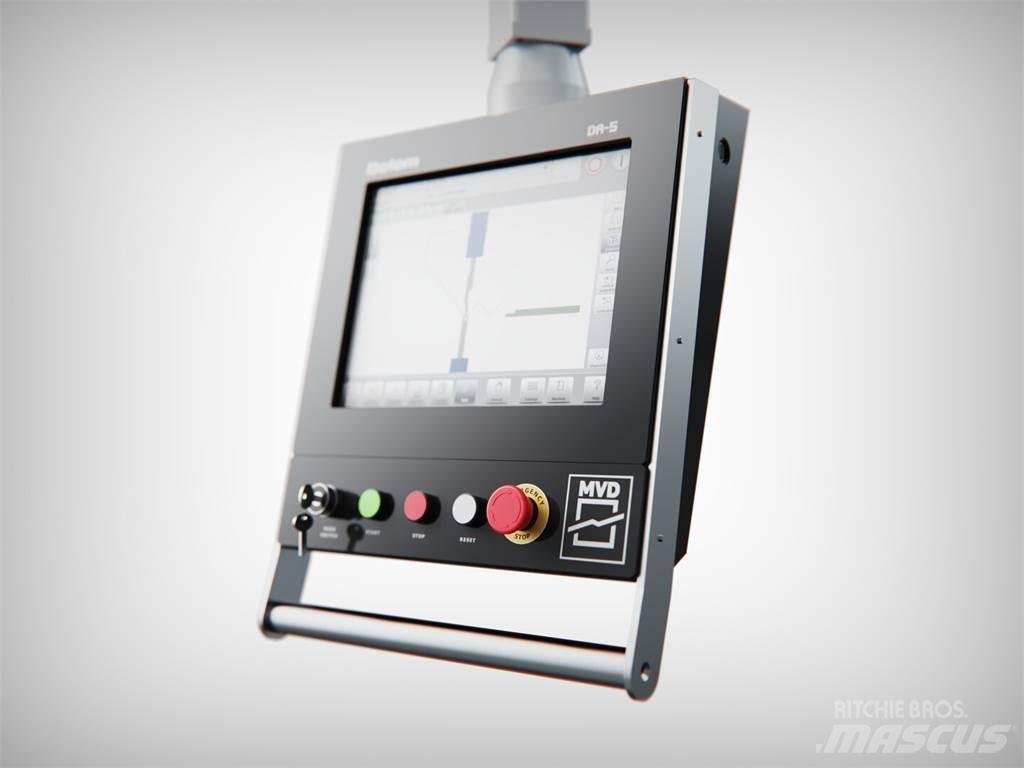

220 ton iBend Hydraulic Press Brake B-Series B220-3100 Title: 220 ton iBend Hydraulic Press Brake B-Series B220-3100 SKU: 29792 Model: B220-3100 Condition: New GeneralBed Length:3100 mm / 122 in. Tons:220ton Brake Type:Hydraulic CNC:Yes ElectricalVoltage:600volts Phase:3-phase Dimensions: 118.03 (H) x 95.67 (W) x 185.83 (L) inches Throat: 410 mm Daylight: 465 mm Stroke: 260 mm Distance between columns: 2600 mm Table Height: 955 mm Standard Features - Y1, Y2, X (3-Axes CNC) - 2x pieces Back Gauge finger, straight, 3 stage, manually movable along the linear guide - American&European Style Quick clamp Promecam top tool holder E20 - 2x pieces Standard sliding front support arms - MVD special narrow bottom plate (European Type) - Standard Punch ES 1281 (H: 104, 85°, R: 0.8) - Standard Die ES 2067 (60x60 mm, 4 channels V = 16-22-35-50 mm, 85°, H:60) - 2019 B-Series open cabin cover - Single Pedal (Press) - P2 - Encoder - Linear Scales: GIVI - LED illumination on RAM - Electric components: Schneider 575V/ 60 Hz - Hydraulic: Hoerbiger (HAWE) Blok - Electric cabin: VDE - Pump: Eckerle - Driver: Mitsubishi / LS Electric Additional - iBend - Back Gauge MVD (X+R) - SERVO Motorised - CNC Controlled Type#1 Crowning (by Wila wedges and G.E.C motor) - Delem DA-66T, 17" Touch Screen, 2D Graphical, (3-8 Axes) with Profile-T-Lite - T2D Offline programming software - 150mm Large bottom table with 13,1mm American groove + IW: 70mm EU Die holder - MSD front safety lasers + rear light beams
