VEOLIA

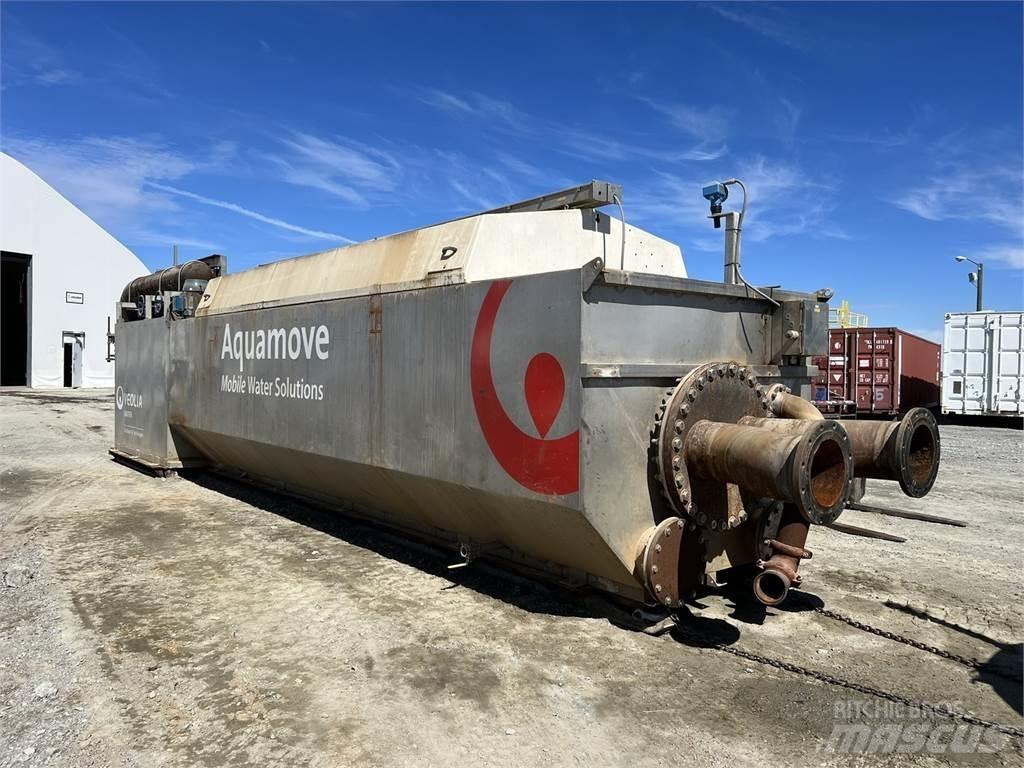

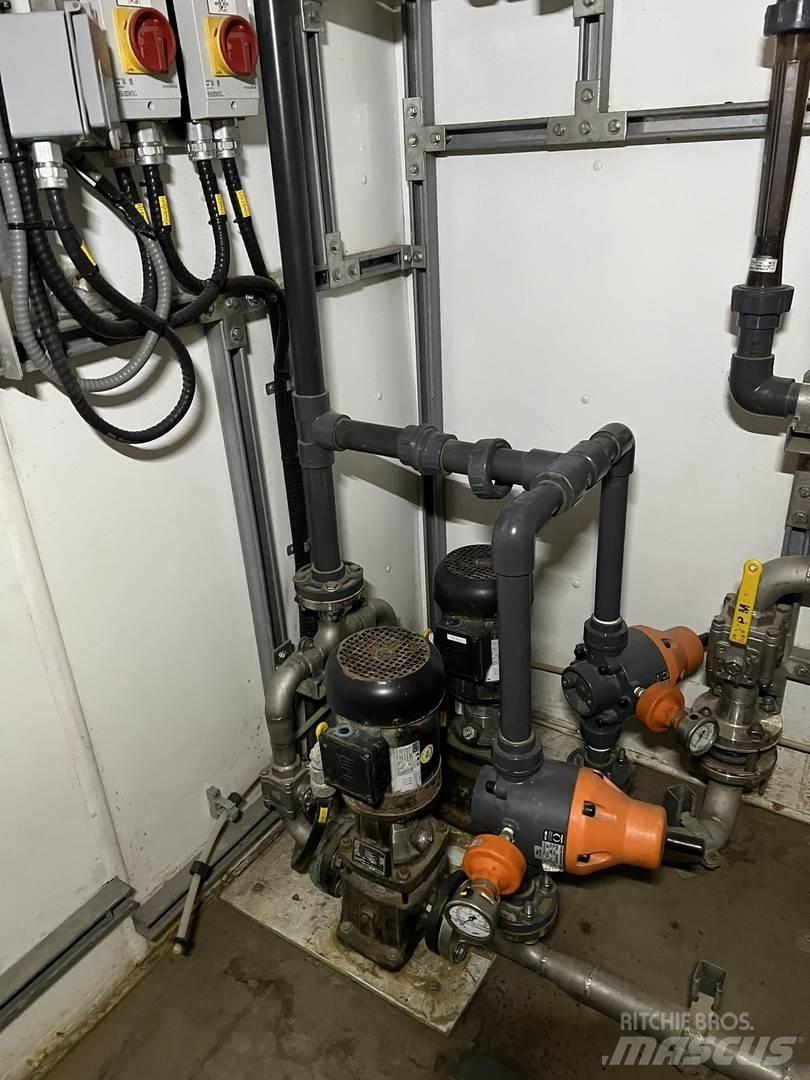

Water Treatment System w/ Clarifiers, Sand Filters, & Disc Filter Title: Water Treatment System w/ Clarifiers, Sand Filters, & Disc Filter SKU: 131107 Condition: Used This Water Treatment System Includes: 2 x VEOLIA-JOHN MEUNIER Actiflo High-Performance Clarifiers Model: ACP2-40M Nominal Capacity: 1100 USGPM Required Capacity: 350 - 1500 USGPM Rise Rate ... Nominal Flow: 32 USGPM/Sq. Ft. Rise Rate ... Min. Required Flow: 10 USGPM/Sq. Ft. Rise Rate ... Max. Required Flow: 44 USGPM/Sq. Ft. Each Actiflo High-Perfomance Clarifier comes with the Actiflo Turbo Package, consisting of: - Coagulation Tank - Maturation Tank - Lamellar Settling Tank - Sludge Collection Troughs & Hopper - Clarified Water Troughs - Circular Scraper - Microsand Recirculation System (Hydroclones) - Each recirculation line has one pump and one hydroclone - Hydroclone Specifications: - Make: EXSTO - Model: MA-20 (760mm) - Material: Polyurethane TM390 (ACS) - Inlet (Vortex Finder): 42mm - Outlet (Apex): 30mm - Inlet Flow (Sludge): 66 - 132 USGPM - Inlet Flow (Service Water): 10% to 20% of Sludge Inlet Flow - Performance: Recovery of solids > 50 microns 1 x KRUGER/HYDROTECH 2200 Series Disc Filter Model: HSF2224D-1FN Serial No.: 6757 Manufacture Year: 2010 Drum Diameter w/ Discs: 2200mm Max. Number of Discs: 24 Includes: Enclosed tank and control enclosure 2 x Chemical & Electrical Control Containers Each containing: - Control and Electrical Panels - Retention Tank - Hot Water Tank - Coagulant Dosing Station - Polymer Preparation and Dosing Station (VEOLIA Hydra-Pol 250) - NaOH Dosing Station - Emergency Shower Station 2 x BAKER 4-Pod Sand Filter Description: Skid-mounted, high-rate, automatic backwashing sand media filter with 4 pods, designed for general purpose water filtration of organic and inorganic solids. Model: IL 5424-4AS Serial No.: SFL22333 Min./Max. Pressure: 35/80 PSI Max. Flow: 1000 GPM B/W Flow: 80 GPM Supporting Documents [Manual - Actiflo High-Performance Clarifier ACP2-40M and Turbo Package](... - KRUGER/HYDROTECH 2200 Series Disc Filter HSF2224D-1FN](... - Disc Filter General Arrangement](... - Chemical Container General Arrangement](... - Clarifier Piping & Instrumentation Diagram (PID)](... - Disc Filter Piping & Instrumentation Diagram (PID)](... - Service Water Piping & Instrumentation Diagram (PID)](... - Coagulant Piping & Instrumentation Diagram (PID)](... - Polymer Piping & Instrumentation Diagram (PID)](... - Caustic Piping & Instrumentation Diagram (PID)](... - Process Flow Diagram](... - Possible Installation Layout](... system is designed by Veolia's AQUAMOVE service, with each component designed with the ability to be mobile and easily transported.
