NPK B5500

Nettó ár

Ár nélkül

Compnay LOGO
Images4
NPK B5500 Komplett üzemek
NPK B5500 Komplett üzemek
NPK B5500 Komplett üzemek
FavoriteKedvenc
shareMegosztás
Save searchKeresés mentése
Nyomtatás

INFÓ

Termékcsalád
Komplett üzemek
Márka / modell
NPK B5500
Gyártási év
2022
Extrák
Új
Telephely
North Las Vegas, Nevada
Ország
Egyesült Államok
Mascus ID
60AFF5AA

TERMÉKLEÍRÁS

Gyártó ország
Egyesült Államok
Egyéb információ

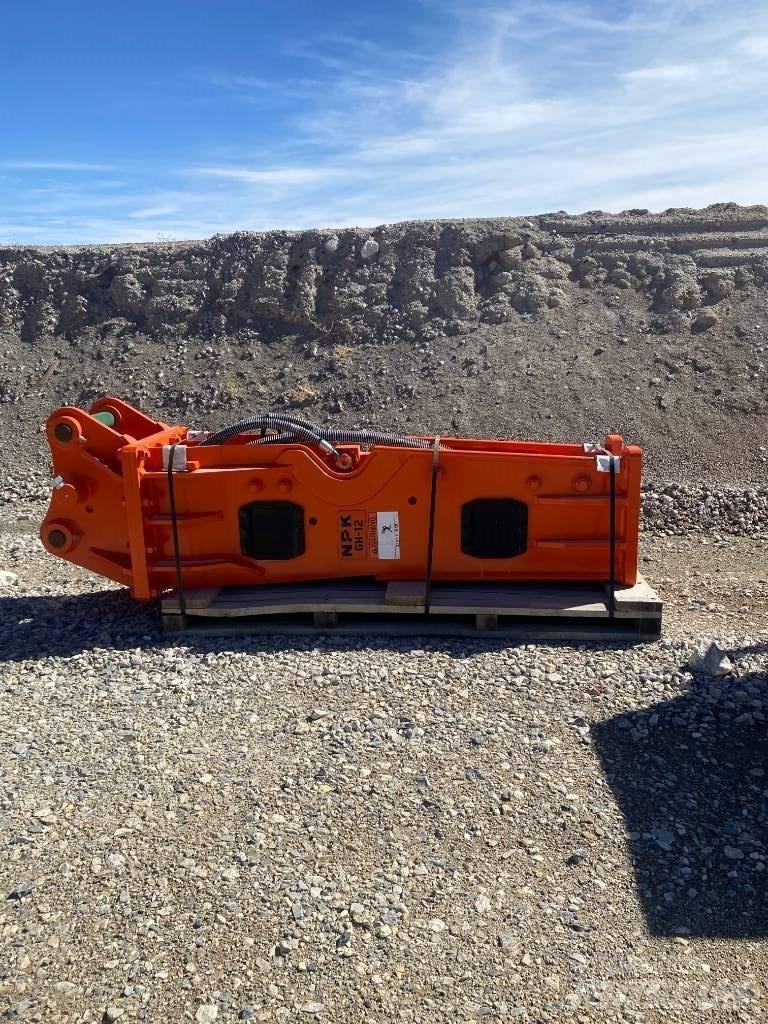

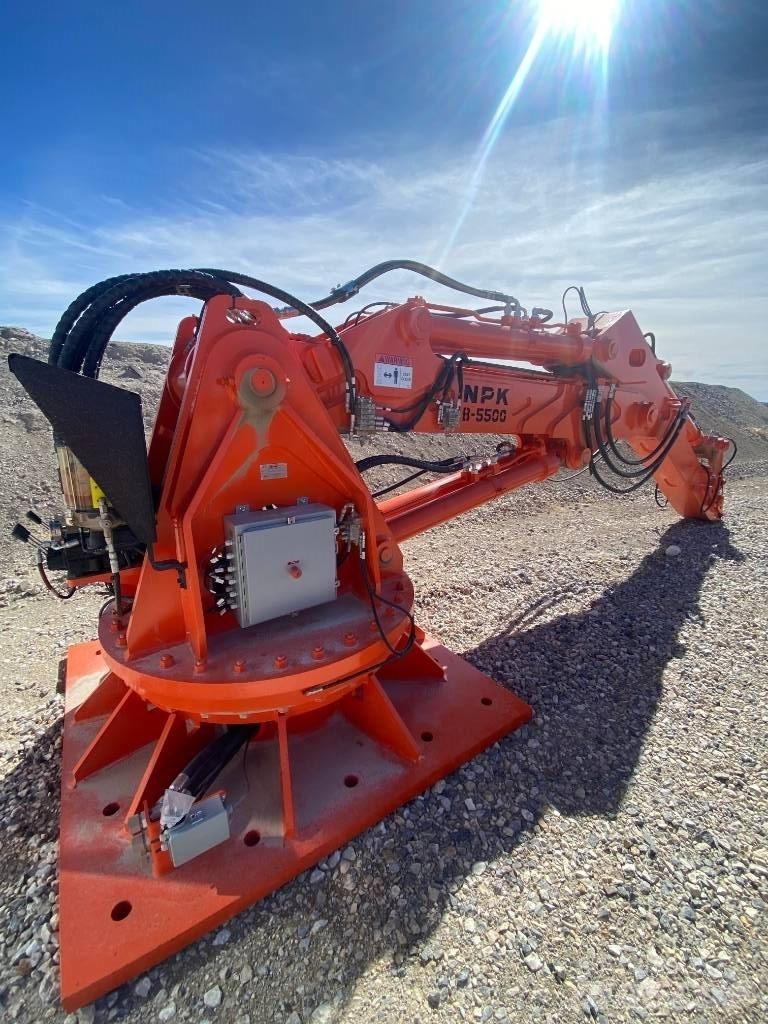

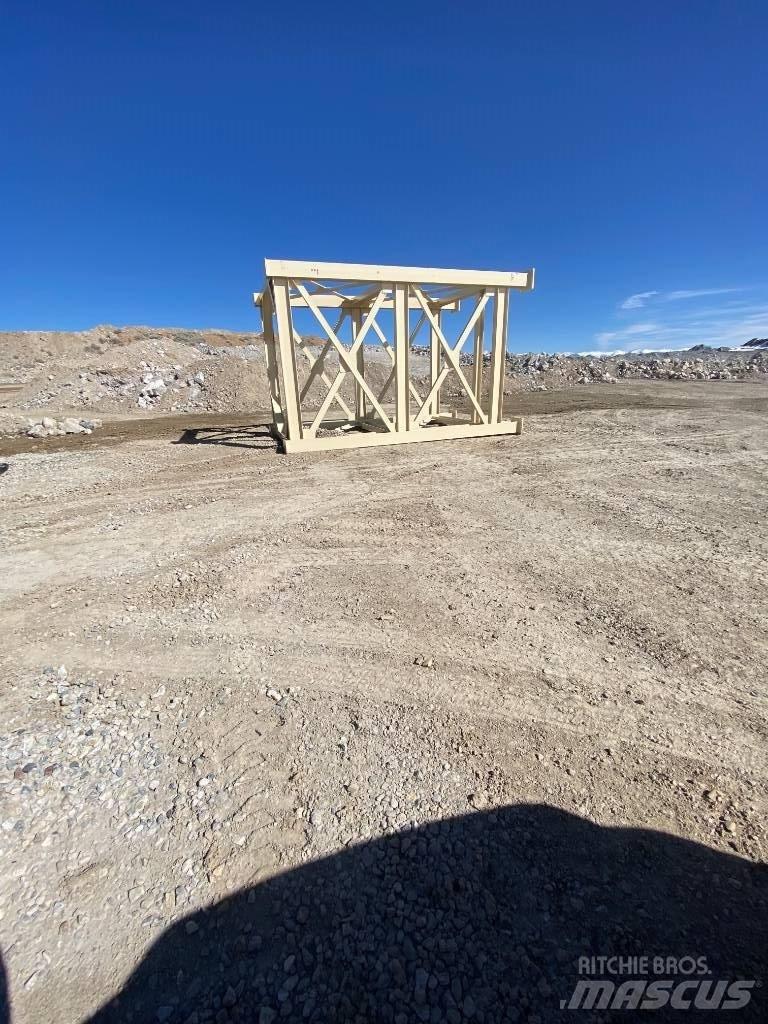

Complete System B5500 with GH-12 on ICM Hammer Stand 1.1 Model B5500 – Pedestal Unit • 21.9ft (6.7m) Heavy Duty Hydraulic Pedestal • 48” Slew ring bearing 280+ degree swing with adjustable stops • Heavy duty twin boom and twin stick cylinders • Lifting eyes on base and stick • Oversized hardened pins and bushings at every joint • Laminated reinforced steel pivot points • See “Option Below” for all pedestal options. 1.2 Model HP125 - Hydraulic Power Unit • 125HP electric motor, 480V, 3ph, 60Hz (if a different voltage or hertz is required, please let your dealer or NPK know as this may change the price and/or delivery) • Elevated Hydraulic reservoir 150-gallon tank with internal baffle and large clean out port • Load sensing and pressure compensated piston pump • Visual sight and temperature glass • Breather filler assembly • Suction strainer with oil shut off • Return filter w/dirty indicator • High pressure filter w/dirty indicator • Pressure gauge 0-5000 PSI • (Starter, heater and cooler not included in Item 1) if NPK Starter is purchased the power unit will be 100% self-contained with only one customer electrical connection required. • See “Options Below” for all power unit options. 1.3 Electric / Hydraulic Controls • Danfoss Plus+1 control system • Joystick control console w/ two (2) proportional joysticks, display screen, and key switch (screen pages may vary depending on options chose) • Junction box mounted on pedestal with wire harness • Solenoid driven multi-Valve (5 section) • 12Vdc power supply (110Vac/230Vac to 12Vdc) • 150ft control cord; if a longer cord is required cord length must be specified at time of order (price adder may apply). • All boxes and components meet or exceed IP65 NEMA 4   2.4 GH-12 Hammer • 5,500 ft- lbs. Impact Energy Class • Heavy duty hydraulic breaker • Hidden hammer hoses (hoses routed inside bracket) • Mounting kit (pins, hoses, retainer bolts) • Blunt tool (if different tool is required, please specify when ordering may change the price). ICM Stand Free Standing Hammer Stand with stairs and structure for Operators CabMutasson többet

ICM Solutions

4055 S 500 W 84123 Murray Utah Egyesült Államok
