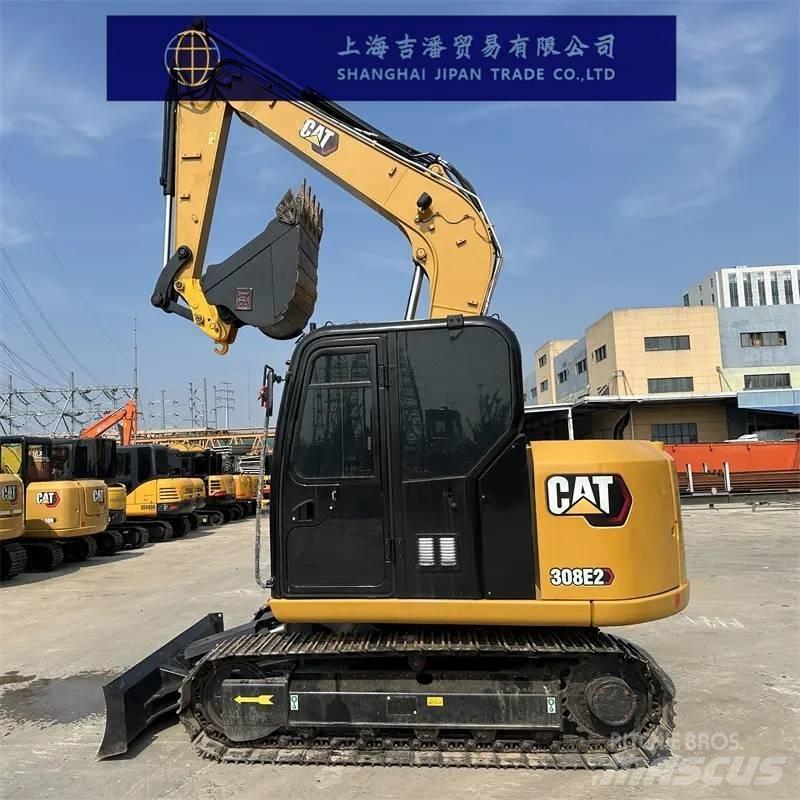

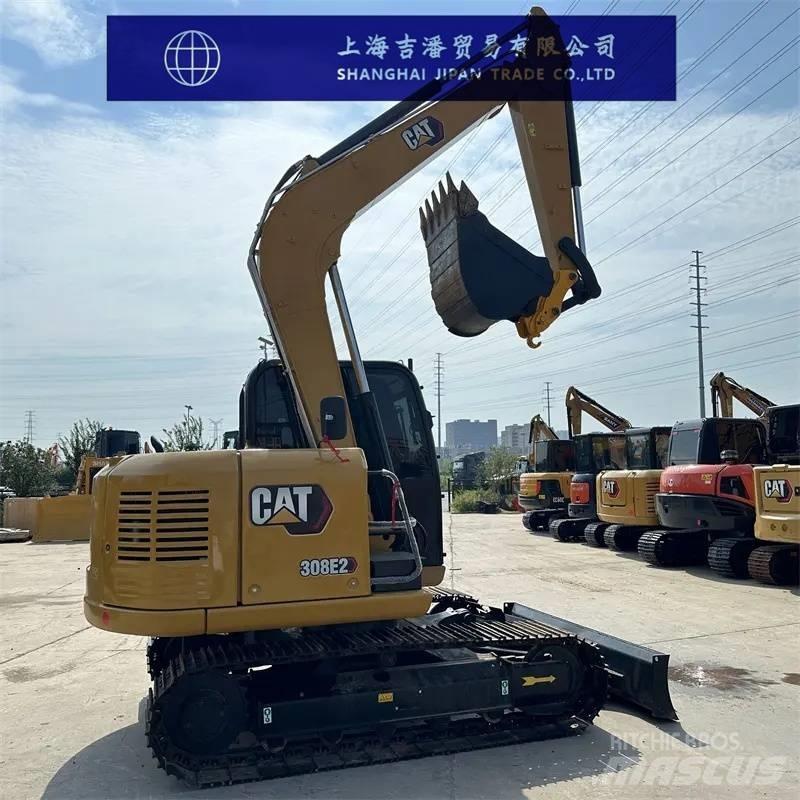

CAT 308 E
Nettó ár
Nyomtatás
INFÓ
Termékcsalád
Közepes (midi) kotrók 7 t - 12 t
Márka / modell
CAT 308 E
Gyártási év
2024
Üzemóra
500 h
Ország
Kína
Általános besorolás
1
2
3
4
5
Mascus ID
6E689236
ÁR
Pénznem kijelölése
TERMÉKLEÍRÁS
Raktári száma
1
Üzemmód
Dízel
Előző tulajdonosok száma
1

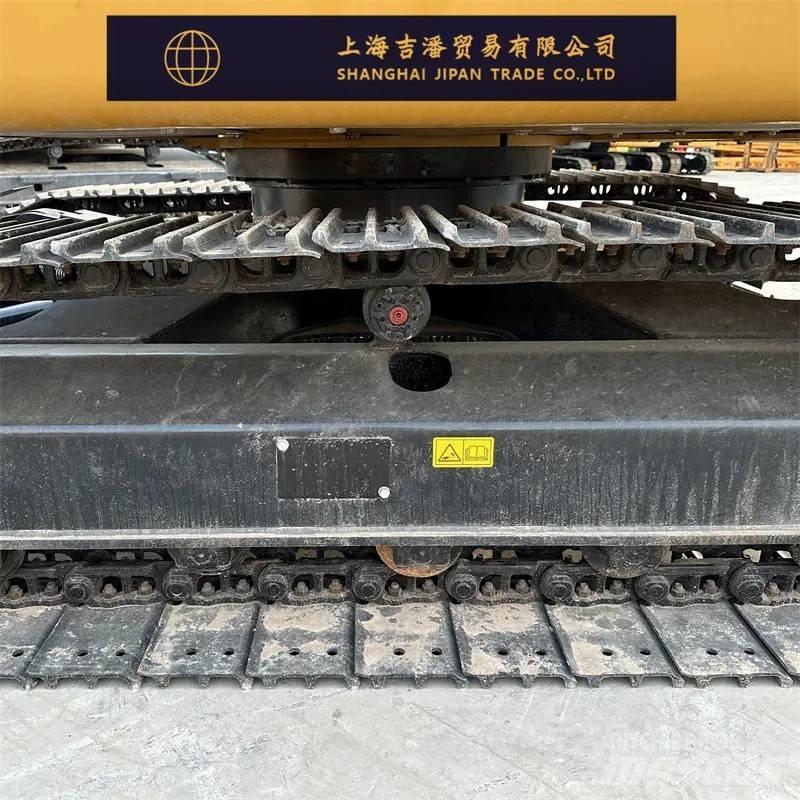

Undercarriage condition
Good Condition
Utolsó szemle
2025-07-08
Szériaszám
1
Össztömeg
7 760 kg
Motor
Original
Károsanyag kibocsátási osztály
EURO V
Motorteljesítmény
49,7 kW (67,6 lóerő)
Regisztrációs szám
1
Motor gyártója
Original
Kanál
0,31 m3
nyomtáv
600 mm
Szállítási méretek (HxSzxM)
6080 x 2320 x 2700 mm
A kiegészítő hidraulika teljesítménye
147 l/perc
Eredeti szín
Original
Garancia
1 Year
Gyártó ország
Egyesült Államok
Szállítási feltételek
FCA, FOB, CIF, EXW
Tanúsítványok
EPA, CE
Mellékletek
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Tartozékok
Twig wire box
Klíma
Kiegészítő hidraulika
motor előszűrő
rostkanál
forgó jeladó
dízel fűtőkészülék
joystick vezérlés
mélyásó kanál
kábelezett kanál
trapéz kanál
Egyéb információ
Parameter configuration of Cat 308E hydraulic excavator
Specification
Power Traditional Power
Joint venture/import by manufacturers
Bucket backhoe
Tonnage (tons)8
The working weight of the entire machine (kg) is 7760
Bucket capacity (m³)0.31
Boom length (mm) : 1820 (Optional: 2210)
Performance
Walking speed (km/h)3.2/5.1
Climbing ability (%) : 30°
Bucket digging force (kN) : 57.1
The digging force of the bucket arm (kN) is 38.9
Power system
Engine model Cat C3.3DI
Rated power (kw/rpm) : 49.7/2000
Hydraulic system
The maximum flow rate of the main pump (l/min) is 147
Working hydraulic circuit (Mpa)28
Walking hydraulic circuit (Mpa)28
Rotary hydraulic circuit (Mpa)24
The main overflow set pressure (Mpa) is 28
Main body size
Total transportation length (mm) : 6080
The total transportation width (mm) is 2320
The total transportation height (mm) is 2700
Scope of work
Maximum excavation radius (mm) : 6420
Maximum excavation depth (mm) : 4210
Maximum excavation height (mm) : 7330
Maximum unloading height (mm) : 5300
