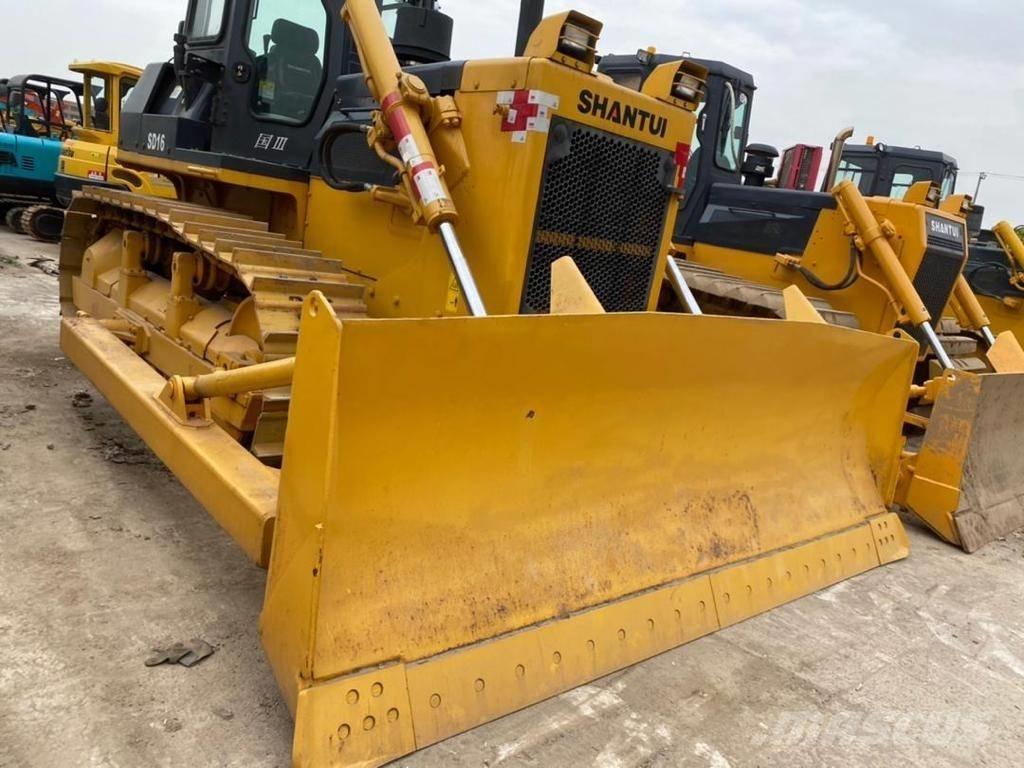

Shantui SD 16

Model: Shantui/Cummins SD6D125L (Tier 2/Tier 3 compliant in some markets) Power: ~160 HP (119 kW) Torque: High low-end torque for demanding conditions. Transmission & Drivetrain Mechanical transmission (6 forward + 3 reverse gears) Dry clutch system for reliability. Final drives: Heavy-duty design for longevity. Blade Capacity Straight Blade (S-Blade): ~3.8 m³ Universal Blade (U-Blade): ~4.1 m³ Angle Blade (A-Blade): Adjustable for side casting. Operating Weight ~16,500 kg (varies with configuration) Undercarriage Wide track shoes (560mm/720mm options) for better ground pressure distribution. Sealed track rollers for reduced maintenance. Performance Max Speed: ~10.4 km/h (forward), ~12.3 km/h (reverse) Drawbar Pull: ~18,000 kgf (high traction force) Operator Comfort Basic ROPS/FOPS cabin (no-frills but functional). Mechanical controls (some newer models may have hydraulic controls). Applications: Earthmoving (road construction, land clearing) Mining & Quarrying (ripping, pushing material) Agriculture & Forestry (land preparation) Infrastructure Projects (dams, railways) Comparison with Competitors: Similar models include: Komatsu D65PX-18 (more advanced, higher price) CAT D6R (higher performance, Tier 4 compliance) LiuGong CLG416 (Chinese alternative) Shantui SD16 Advantages: Lower purchase & maintenance costs Simple mechanical design (easier to repair)
