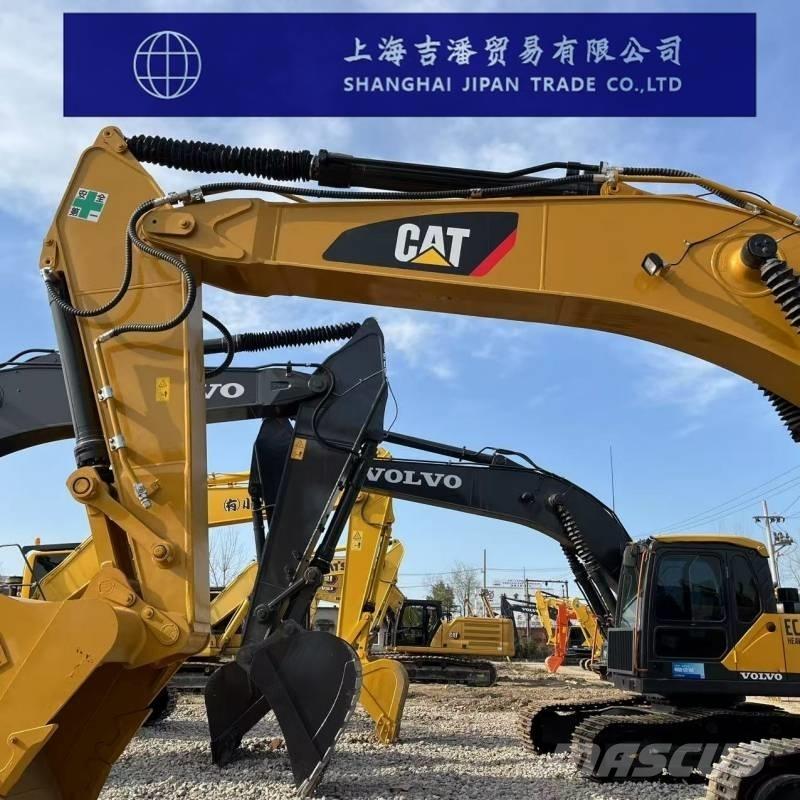

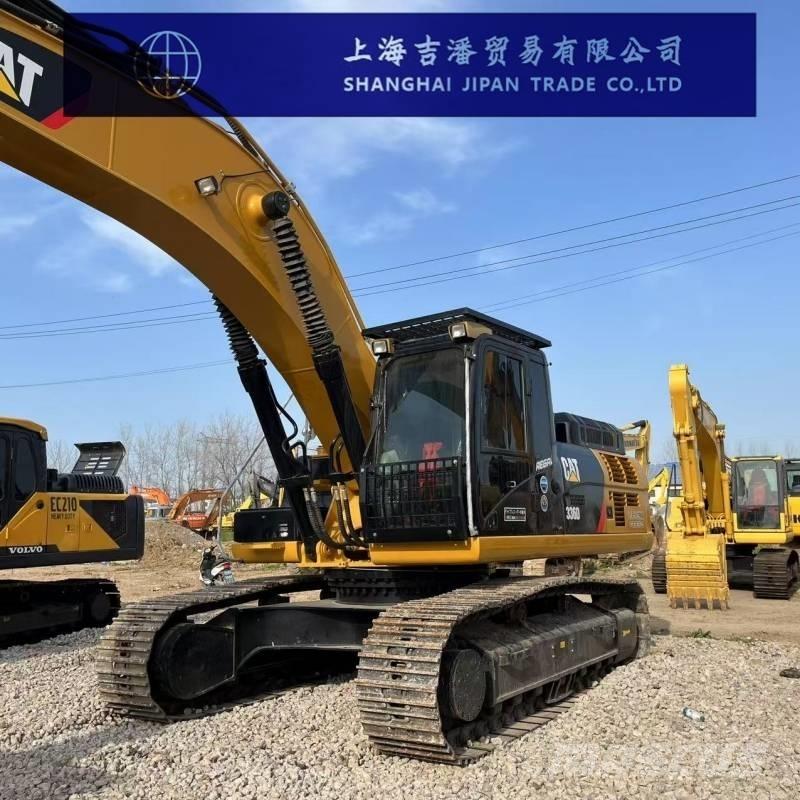

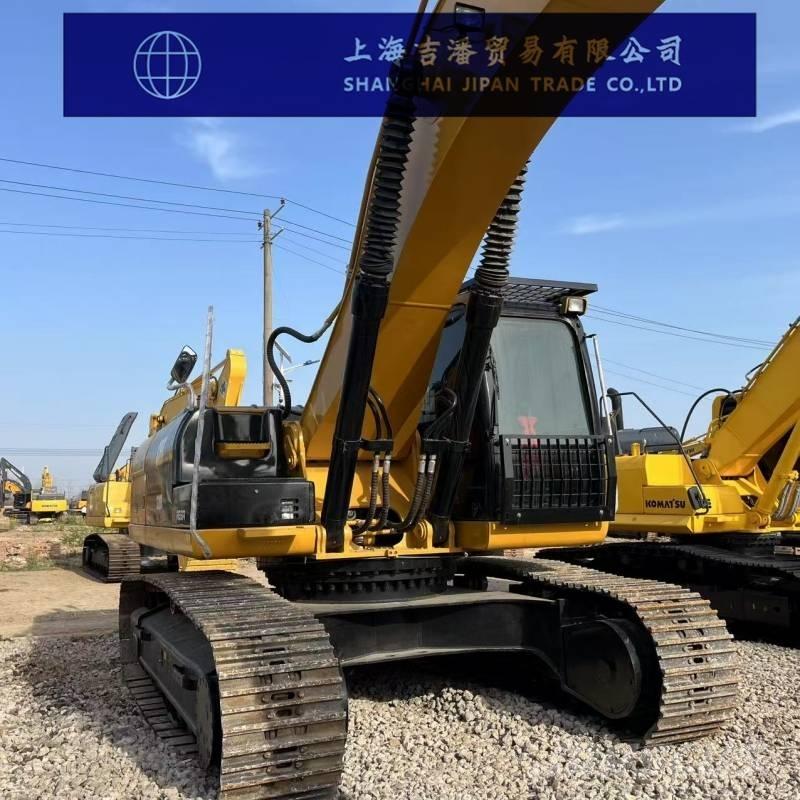

CAT 336 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Caterpillar's new generation CAT®336 hydraulic excavator parameter configuration specification Power fuel Manufacturer domestic Bucket backhoe Tonnage (tons) 36 The working weight of the whole machine (kg) is 36900 Bucket capacity (m³) 2.2 Boom length (mm) 6500 Stick length (mm) 3200 performance Rotational speed (rpm) 8.84 Rotational torque (Nm) 143k Travel speed (km/h) 4.7 Bucket digging force (kN) 209 Bucket digging force (kN) 166 Maximum traction (kN) 302.5 dynamical system Engine model C7.1 TTA Rated power (kw/rpm) 225/2000 Displacement (L) 7.01 Bore × stroke (mm) 105*135 Emission Standards Country IV. Hydraulic system The maximum flow rate of the main pump (l/min) is 560 Working hydraulic oil circuit (Mpa) 35 Traveling Hydraulic Circuit (Mpa) 35 Slewing Hydraulic Circuit (Mpa) 29.4 Oil capacity Fuel tank (L) 600 Hydraulic Tank (L) 161 Hydraulic System (L) 373 Engine oil change volume (L) 25 Coolant (L) 39 Body size Total length of transport (mm) 11170 Total width of transport (mm) 3340 Total height of transport (mm) 3180 Total track length (mm) 5030 Track shoe width (mm) 600 Track gauge (mm) 2740 Minimum ground clearance (mm) 510 Counterweight ground clearance (mm) 1260 Rear end turning radius (mm) 3530 Scope of work Maximum digging radius (mm) 11090 Maximum digging depth (mm) 7550 Maximum digging height (mm) 10340 Maximum unloading height (mm) 7050 Maximum vertical digging depth (mm) 5790
