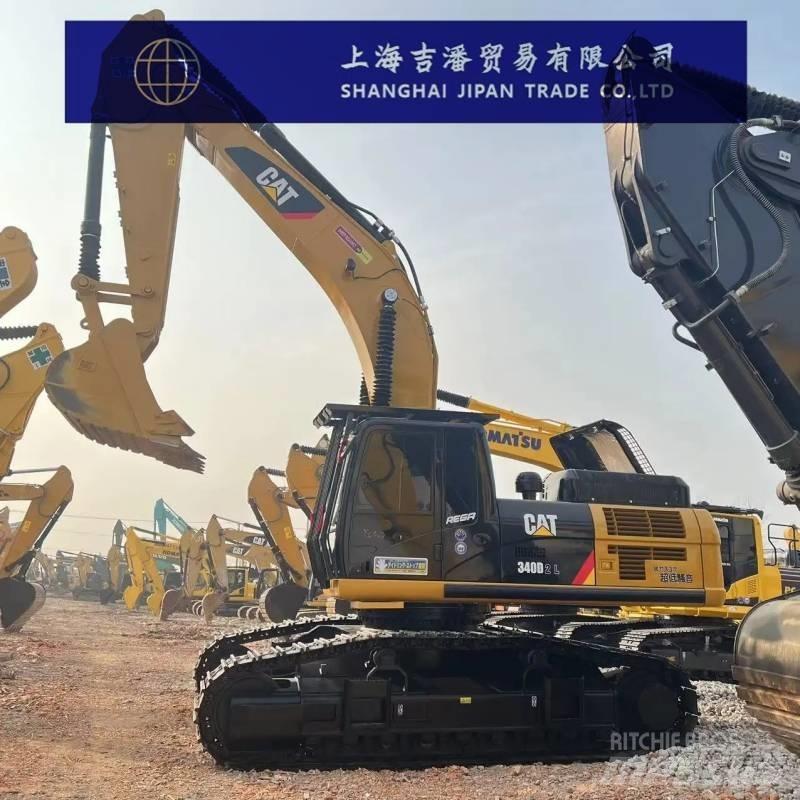

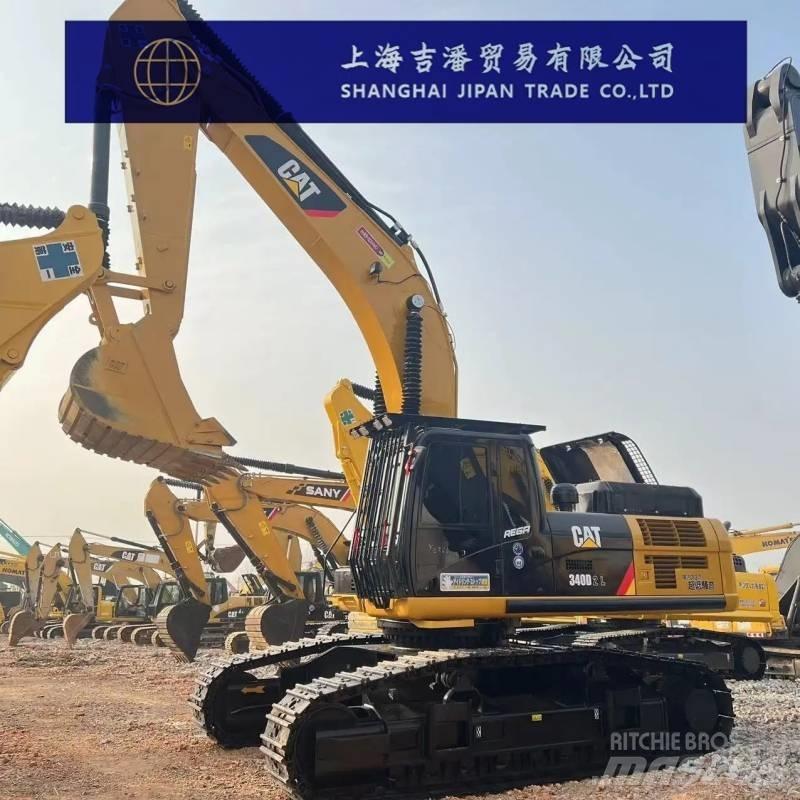

CAT 340 D
Nettó ár
Nyomtatás
INFÓ
Termékcsalád
Lánctalpas kotrók
Márka / modell
CAT 340 D
Gyártási év
2024
Üzemóra
600 h
Ország
Kína
Általános besorolás
1
2
3
4
5
Mascus ID
756D249B
ÁR
Pénznem kijelölése
TERMÉKLEÍRÁS
Raktári száma
1
Üzemmód
Dízel
Szériaszám
1
Előző tulajdonosok száma
1
Utolsó szemle
2025-07-01

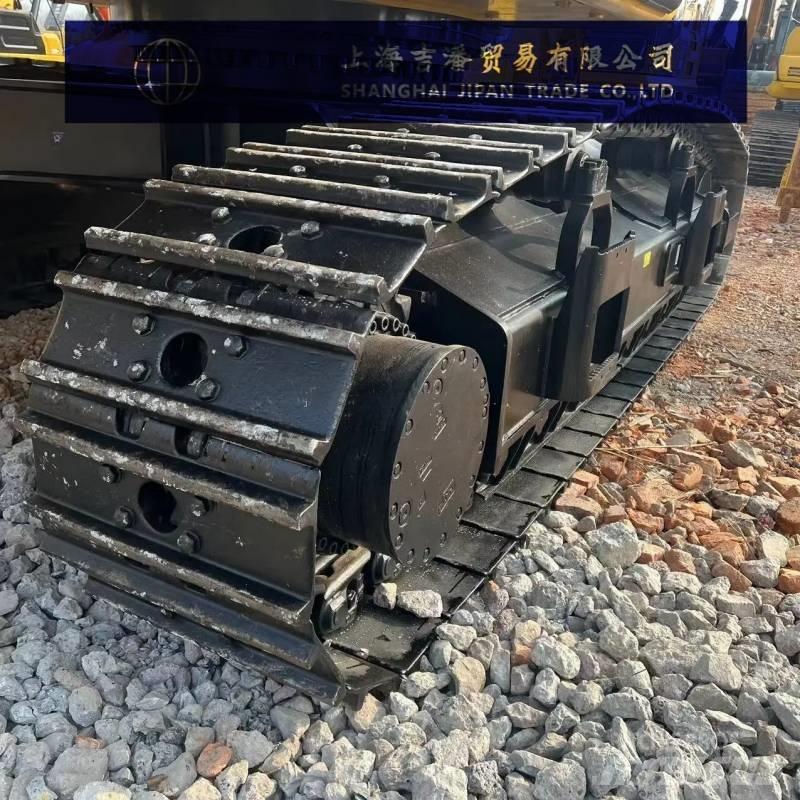

Undercarriage condition
Good Condition
Motor
Original
Össztömeg
38 900 kg
Motorteljesítmény
208 kW (283 lóerő)
Motor gyártója
Original
Regisztrációs szám
1
Károsanyag kibocsátási osztály
EURO V
Kanál
1,90 m3
nyomtáv
600 mm
A kiegészítő hidraulika teljesítménye
281 l/perc
Csúcssebesség
5,50 km/h
Szállítási méretek (HxSzxM)
11170 x 3620 x 3630 mm
Eredeti szín
Original
Garancia
1 Year
Gyártó ország
Egyesült Államok
Szállítási feltételek
FCA, FOB, CIF, EXW
Tanúsítványok
EPA, CE
Mellékletek
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Tartozékok
alapgém zuhanásgátló szelep
kanálgém zuhanásgátló szelep
Twig wire box
Klíma
Kiegészítő hidraulika
motor előszűrő
rostkanál
akkumulátor kapcsoló
forgó jeladó
dízel fűtőkészülék
joystick vezérlés
mélyásó kanál
kábelezett kanál
rakodó kanál
trapéz kanál
Egyéb információ
Specification
Power Traditional Power
Joint venture/import by manufacturers
Bucket backhoe
Tonnage (tons)40
The working weight of the entire machine (kg) is 38,900 to 41,500
Bucket capacity (m³)1.9
Boom length (mm) : 6500
The length of the boom (mm) is 2800
Performance
Rotational speed (rpm) : 8.3
Rotary torque (Nm)109
Walking speed (km/h)4.6
Climbing ability (%) : 70
Bucket digging force (kN)210
The digging force of the bucket arm (kN) is 185
The maximum traction force (kN) is 300
Power system
Engine model: CatC9
Rated power (kw/rpm)208
Displacement (L)8.8
Cylinder diameter × stroke (mm) : 112×149
The working form is a direct injection fuel system with a turbocharger and rear cooler
Hydraulic system
The maximum flow rate of the main pump (l/min) is 281
Pilot pump flow rate (L/min)40
Pilot oil circuit (MPa)4
Walking hydraulic circuit (Mpa)35
Rotary hydraulic circuit (Mpa)28
The main overflow set pressure (Mpa) is 35
Boom cylinders - number × cylinder diameter × stroke (mm)150×1440
Bucket rod cylinder - number × cylinder diameter × stroke (mm)170×1738
Bucket cylinder - Number × cylinder diameter × stroke (mm)150×1151
Oil capacity
Fuel tank (L)175
Hydraulic oil tank (L)620
Hydraulic System (L)410
Engine oil change volume (L)41
Coolant (L)40
Main body size
Total transportation length (mm) : 11,170
The total transportation width (mm) is 3620
The total transportation height (mm) is 3630
The total height of the cab (mm) is 3360
The total length of the track (mm) is 5060
Track plate width (mm) : 600
Track gauge (mm) : 2920
The ground clearance of the counterweight (mm) is 1450
Minimum ground clearance (mm) : 742
The rear end turning radius (mm) is 3490
Scope of work
The maximum excavation radius of the shutdown face (mm) is 10,830
Maximum excavation depth (mm) : 7190
Maximum excavation height (mm) : 10330
Maximum unloading height (mm) : 7000
Maximum vertical excavation depth (mm) : 5460
Maximum effective excavation depth (mm) : 6370
