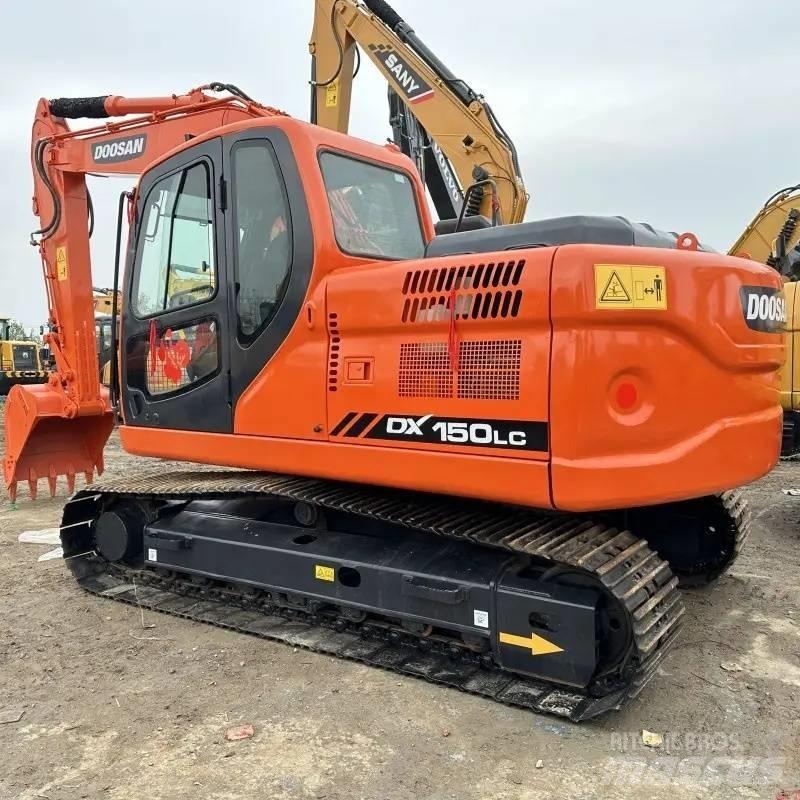

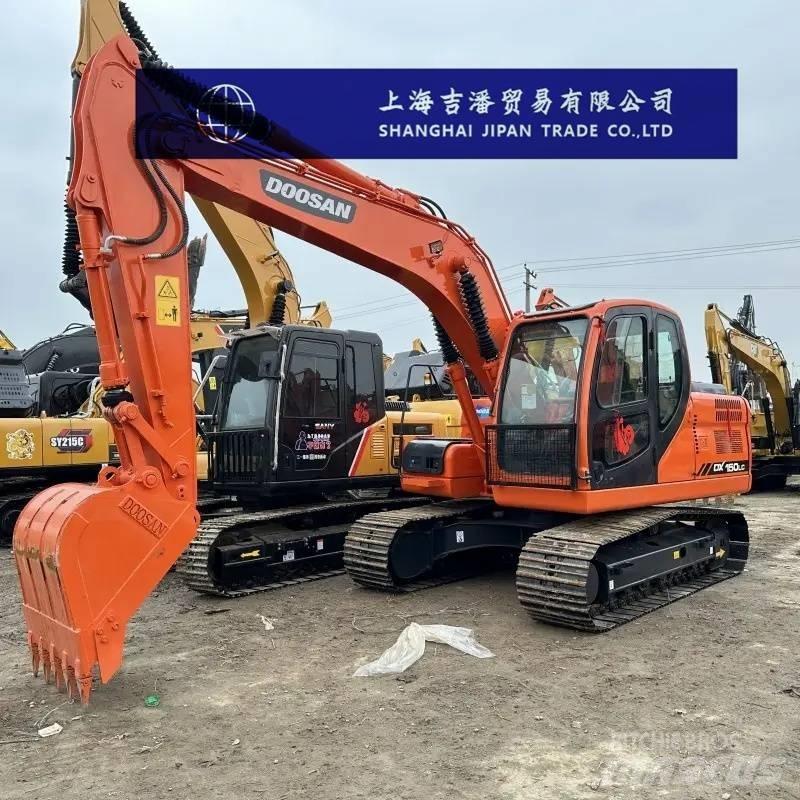

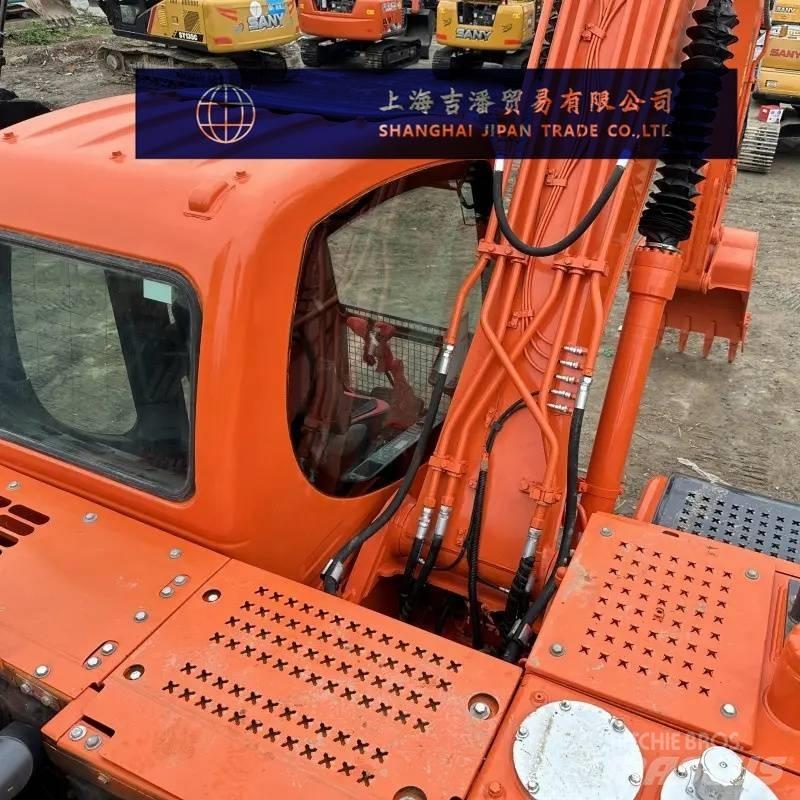

Doosan DX 150

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Doosan DX150LC excavator Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)15 The working weight of the entire machine (kg) is 14,000 Bucket capacity (m³) : 0.58 Origin: South Korea Performance Rotational speed (rpm) : 12.2 Rotary torque (Nm)40 Walking speed (km/h) : 4.9/3.0 The ground pressure (Kpa) is 34.3 Bucket digging force (kN)106 The digging force of the boom (kN) is 65 Power system Engine model: DB58TIS Rated power (kw/rpm) 71/1850 Number of cylinders (6 Cylinder diameter × stroke (mm)102×118 The working form is straightforward. Turbocharged, air-cooled Hydraulic system The main pump type is a variable piston pump The type of walking hydraulic motor is axial piston type ×2 The type of rotary hydraulic motor is axial piston type ×1 The maximum flow rate of the main pump (l/min) is 2×114 The working hydraulic circuit (Mpa) standard is 32.4/ pressurized is 34.3 Walking hydraulic circuit (Mpa)32.4 Rotary hydraulic circuit (Mpa)26.5 Boom cylinders - Number × cylinder diameter × stroke (mm)2-110×75×10-85 Bucket rod cylinder - number × cylinder diameter × stroke (mm)1-115×80×1180 Bucket cylinder - number × cylinder diameter × stroke (mm)1-100×70×900 Oil capacity Fuel tank (L)267 Hydraulic oil tank (L)147 Coolant (L)24 Main body size The total length of transportation (mm) is 7680 The total transportation width (mm) is 2590 Total transportation height (mm) : 2755(to the top of the cab) The total height of the cab (mm) is 2750 The width of the vehicle (mm) is 2540 The total length of the track (mm) is 3750 Track plate width (mm) : 600 Minimum ground clearance (mm)410 The ground clearance of the counterweight (mm) is 890 The minimum turning radius (mm) of the front working device is 2325 Rear end turning radius (mm)2200 Scope of work Maximum excavation radius (mm) : 8305 The maximum excavation radius (mm) of the shutdown face is 8160 Maximum excavation depth (mm) : 5655 Maximum excavation height (mm) : 8750 Maximum unloading height (mm) : 6300 The maximum vertical excavation depth (mm) is 4450 Maximum effective excavation depth (mm) : 5430
