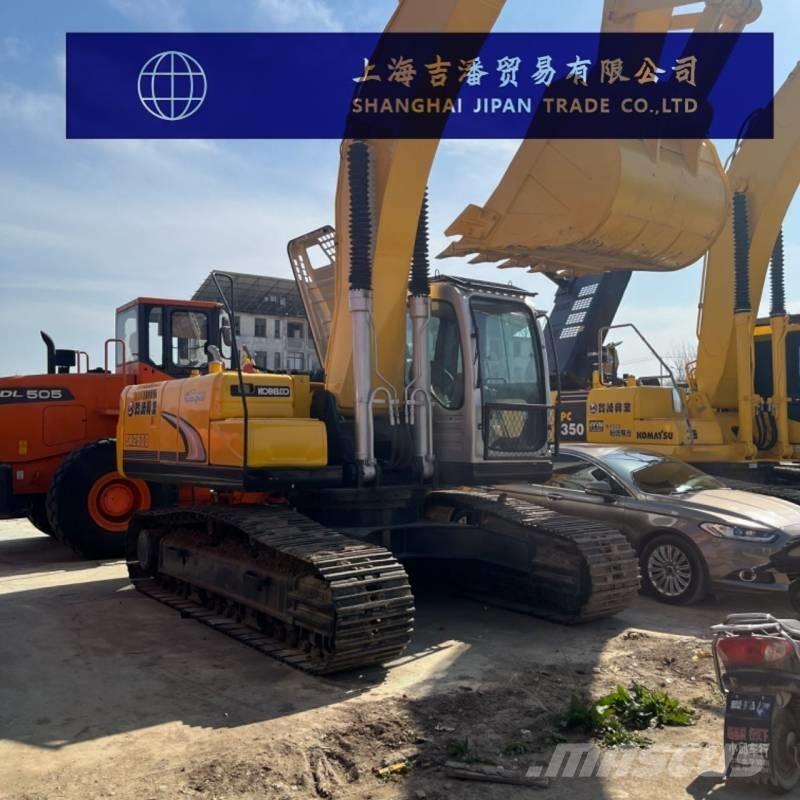

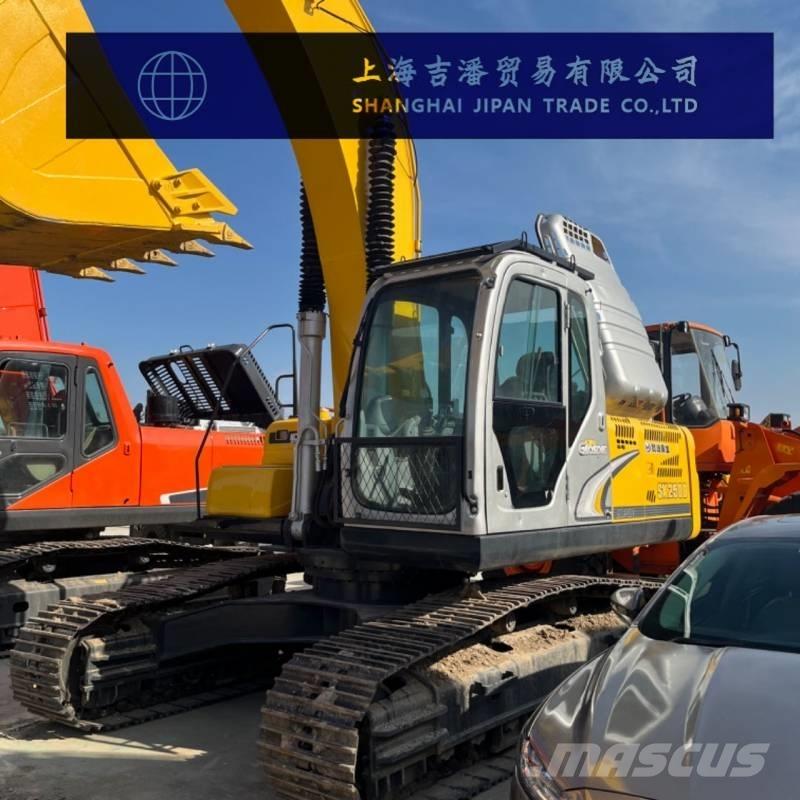

Kobelco SK 250

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Kobelco SK250 excavator Specification Power: Traditional power Manufacturer: Joint venture/Imported Bucket backhoe Tonnage (tons)25 The working weight of the entire machine (kg) is 25,000 Bucket capacity (m³)1.1 The length of the boom (mm) is 2980 Origin: Japan Performance Rotational speed (rpm)11 Walking speed (km/h) : 3.6/5.8 Climbing ability (%)70/35° Ground specific pressure (Kpa)54 Bucket digging force (kN)170 Bucket shaft digging force (kN)119 Power system Engine model: Hino Hino J05E Rated power (kw/rpm) : 131/2100 Displacement (L)5.123 Number of cylinders (4) Cylinder diameter × stroke (mm) : 112×130 The cooling method is water cooling The working mode is direct injection, four-stroke, turbocharged, and built-in intercooling Hydraulic system The main pump types are: double variable displacement axial piston pumps ×2+ pilot gear pumps ×1 The maximum flow rate of the main pump (l/min) is 2×246+20 Working hydraulic circuit (Mpa)34.3 Walking hydraulic circuit (Mpa)34.3 Rotary hydraulic circuit (Mpa)28.5 Control hydraulic circuit (Mpa)5 Boom cylinders - Number × cylinder diameter × stroke (mm)135×1235 Bucket rod cylinder - number × cylinder diameter × stroke (mm)145×1635 Bucket cylinder - number × cylinder diameter × stroke (mm)125×1200 Is the hydraulic crushing pipeline standard? Yes Oil capacity Fuel tank (L)460 Hydraulic oil tank (L)170 Engine oil change volume (L)21 Coolant (L)20 Main body size The total transportation length (mm) is 10120 The total transportation width (mm) is 2990 The total transportation height (mm) is 3200 The grounding length of the track (mm) is 3470 The total length of the track (mm) is 4260 Track plate width (mm) : 600 The total width of the tracks (mm) is 2990 Track gauge (mm) : 2390 Minimum ground clearance (mm) : 460 The ground clearance of the counterweight (mm) is 1090 The minimum turning radius (mm) of the front working device is 3910 Rear end turning radius (mm) : 3020 Scope of work Maximum excavation radius (mm) : 10310 The maximum excavation radius of the shutdown face (mm) is 10140 Maximum excavation depth (mm) : 7000 Maximum excavation height (mm) : 9800 Maximum unloading height (mm) : 6880 Maximum vertical excavation depth (mm) : 6150 Maximum effective excavation depth (mm) :6820 Width × height (mm) of the bulldozer board no bulldozer shovel Lifting or deepening with a bulldozer (mm) no bulldozer
