RONI MOBI

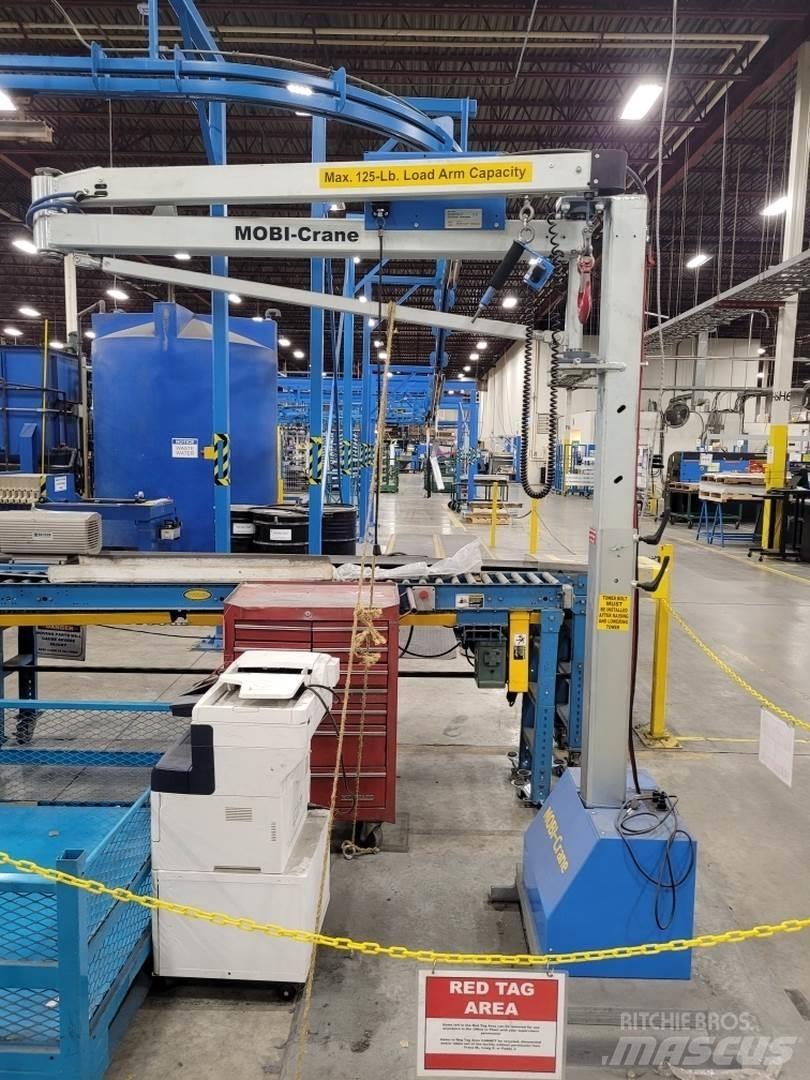

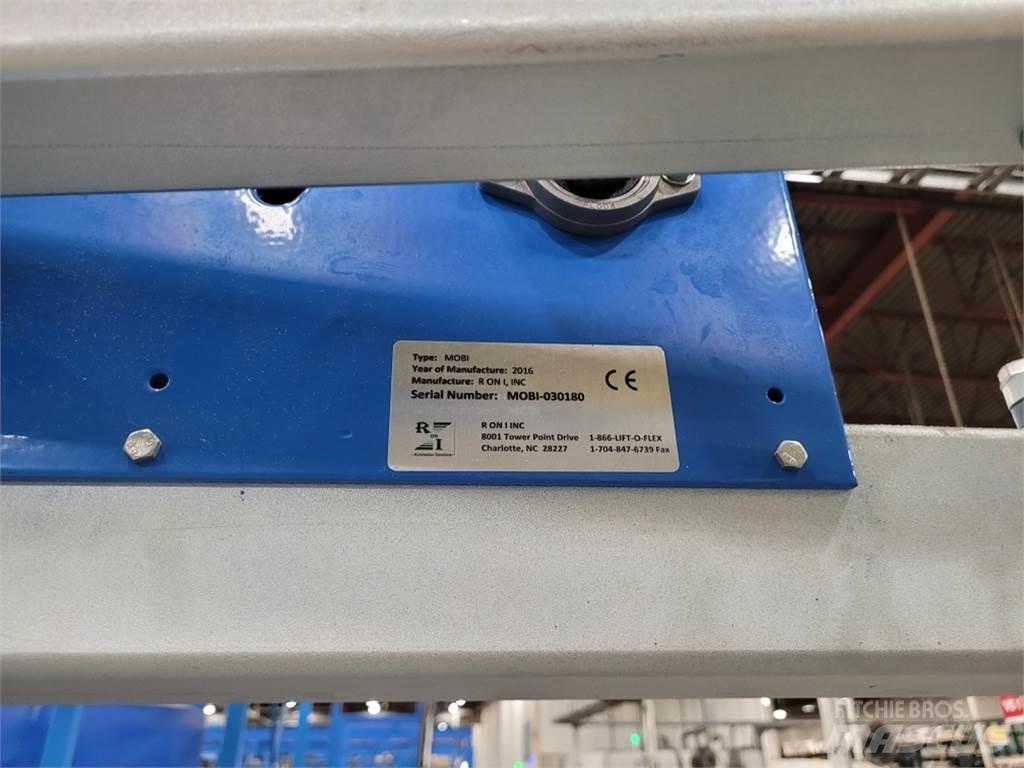

125 lb. Articulated Jib Crane MOBI-030180 Title: 125 lb. Articulated Jib Crane MOBI-030180 SKU: 137146 Model: MOBI Year: 2016 Condition: Used S/N: MOBI-030180 GeneralMax. Lift Capacity:125lb Jib Mount:Floor Mount Dimensions: 114.00 (H) x 59.00 (W) x 88.00 (L) inches 2016 MOBI-030180 0027-68613 Application Pickup various size light fixtures and load these into shipping cases. Cases will be loaded differently for load orientation and weight balancing. Load Light Fixtures High Focus Product: 21.25" W x 26.25" L x 14.25" T #44 - #75 Case Size: 24.6" D x 31.25" W x 16.75" T Case Clearance: 5.5" either side Case Stack (3) levels high (59.75") and (2) rows deep on a 40" x 49" pallet PowerForm Product: 23.5" W x 31.5" L x XX" T #56 - #100 Case Size: 27.5" W x 49.75" L x 11.7" T Case Clearance: 1.5" either side Case Stack (3) levels high (40.6") and a single row on a 40" x 49" pallet Pickup Conveyor: 35" elevation MOBI-Crane Characteristics: - Base Plate Mobile 4' - 11" Diameter Steel (Zinc Electroplating) - Movement Capacity 10' - 0" (2m) Arm length Radius Adjustable Height column 6'-0" - 9'- 0" #110 - End Effector Chain Hook for spreader and sling OR Electro/pneumatic Gripper - Lift Speed Adjustable by Variable Speed Joystick on MOBI-Crane control handle Up to 13"/Sec - Plant Air Requirements 100-110 PSI ... CFM - Hand Control Variable Speed - Power Requirements 110V AC, 60 Hz or 24 VDC battery operated - Noise Level <64dB(A) - Total Weight Approximately 1,250 lbs. w/o end-effecter
