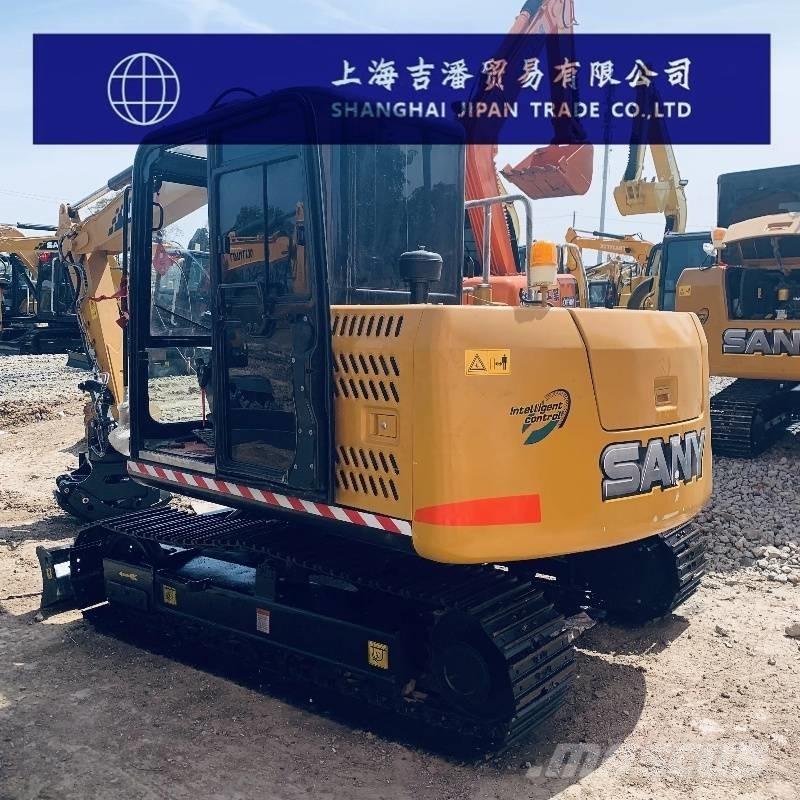

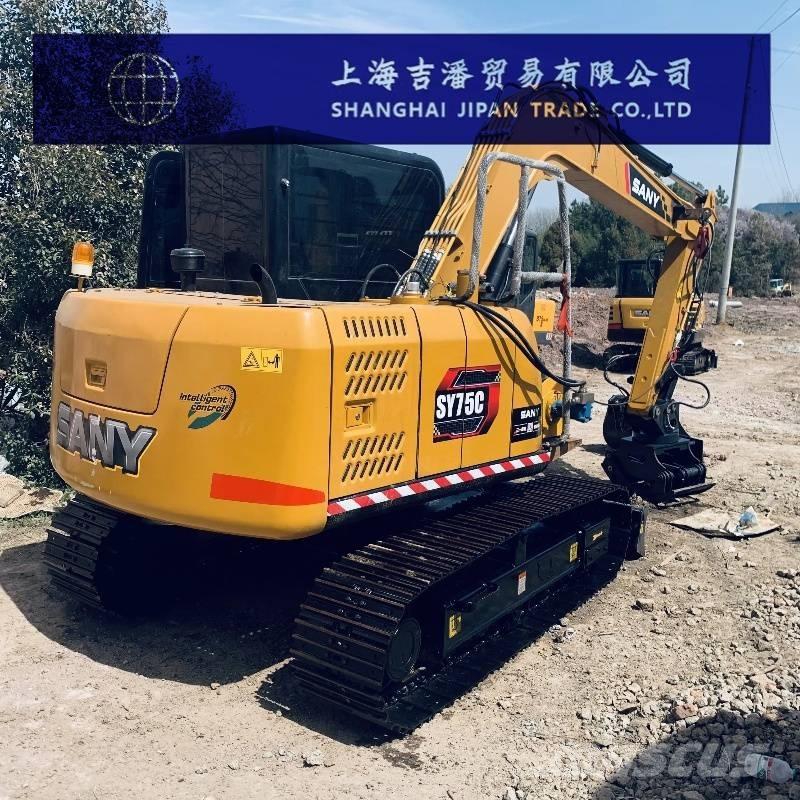

Sany SY 75 C

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Parameters: Total machine weight is 7350kg, bucket capacity is 0.3m³, rated power is 55kW/2000rpm, engine model is Isuzu 4JG3X, swing speed is 11.5rpm, travel speed (high/low) is 4.4/2.4km/h, climbing ability is 70% (35°), ground pressure is 33kpa, bucket digging force is 56kN, and arm digging force is 38kN. Overall Dimensions: Total length (during transportation) is 6120mm, total width (transportation/operation) is 2220mm, total height (during transportation) is 2675mm, upper width is 2040mm, dozer blade height is 405mm, standard track shoe width is 450mm, track gauge (transportation/operation) is 1750mm, minimum ground clearance is 380mm, tail swing radius is 1800mm, and track length is 2820mm. Working Range: Maximum digging height is 7015mm, maximum dumping height is 5110mm, maximum digging depth is 4065mm, maximum vertical digging depth is 3335mm, maximum digging radius is 6240mm, minimum swing radius is 1720mm, maximum height at minimum swing radius is 5505mm, maximum ground clearance when the dozer blade is lifted is 480mm, and maximum sinking depth of the dozer blade is 417mm.
