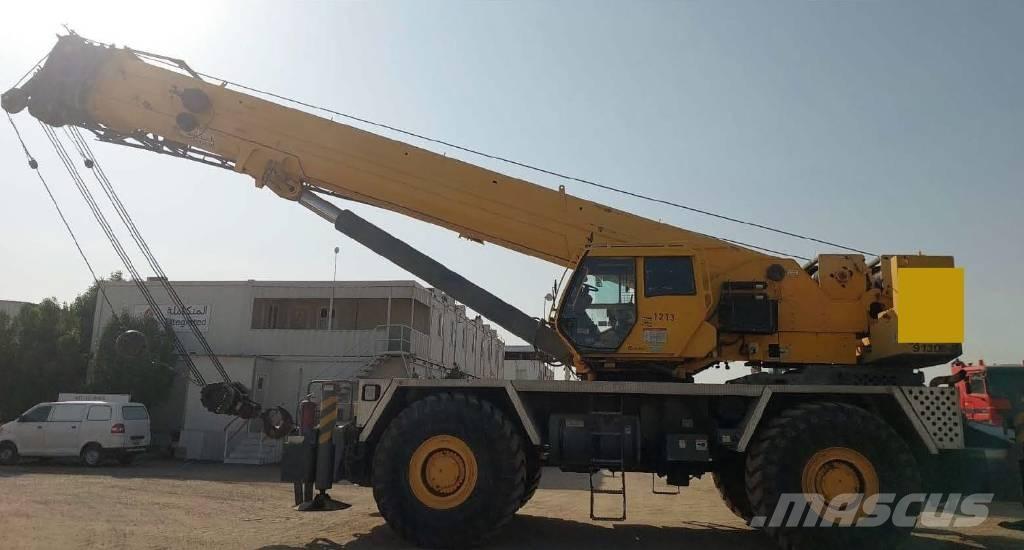

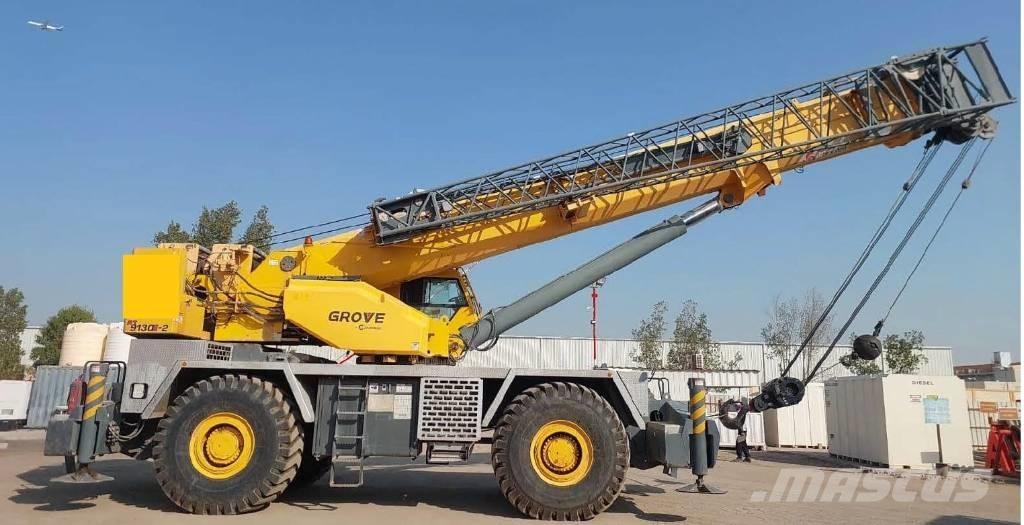

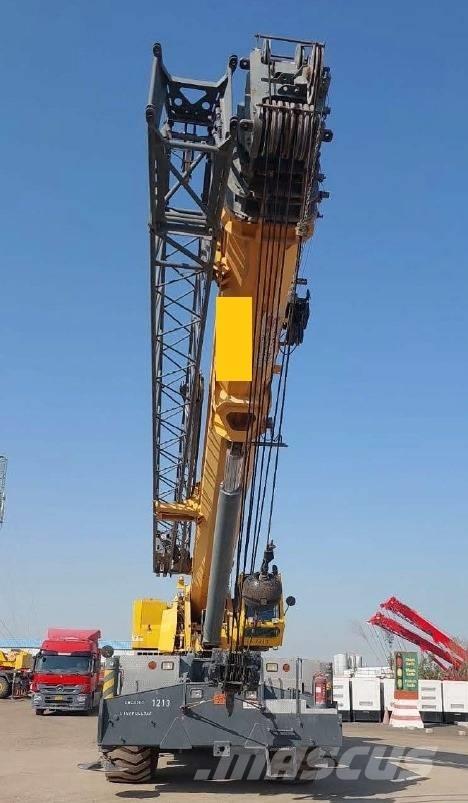

Grove RT 9130 E-2

Grove RT9130E-2 with double drum Loading / lifting capacity: 120t Location: Türkiye (EXW) Boom 12,8 m – 48,8 m, five section, sequenced synchronized full power boom. Maximum tip height: 51,5 m. Bifold swingaway extension 11,0 m - 18,0 m offsetable bifold lattice swingaway extension. Offsets 0°,20° and 40°. Stows alongside base boom section. Maximum tip height: 69,2 m. Lattice Swingaway inserts 2 x 8 m lattice extension inserts. Installs between the boom nose and bifold extension, non-stowable. Maximum tip height: 85,0 m. Boom elevation One double acting hydraulic cylinder with integral holding valve provides elevation from -3° to +78° Engine Tier 3 / Euromot 3A: Cummins QSC 8.3L diesel, six cylinders, 224 kW at 2200 rpm. Maximum torque: 1356 Nm at 1600 rpm. Note: Required for sale outside of North America Drive/Steer 4 x 4. Fully independent power steering: Front: Full hydraulic steering wheel controlled. Rear: Full hydraulic switch controlled. Provides infinite variations of 4 main steering modes: front only, rear only, crab and coordinated. Rear steer indicator. Outriggers Four hydraulic telescoping single-stage double box beam outriggers with inverted jacks and integral holding valves. Three position setting, 0%, 50% and fully extended. Outrigger boxes removable for ease of transportation. All steel fabricated, quick release type outrigger floats, 775 mm diameter. Maximum outrigger pad load: 75 298 kg. Controls and crane level indicator located in cab Transmission Sequential powershift with 6 forward and 3 reverse speeds. Front axle disconnect for 4 x 2 travel.
