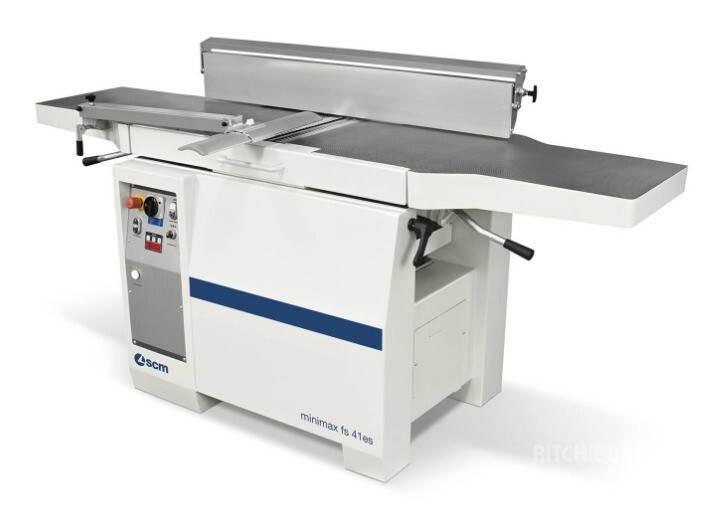

SCM minimax fs 41es

NEW SCM minimax fs 41es Surfacing-Thicknessing Planer w/ Xylent Spiralknife Cutterblock – Woodworking – 4.8 hp, 410 mm / 16.14 ", 240 mm / 9.45 ", 230 volts, Single-phase , Xylent , 8 hp, 410mm ", 115/230 volts, Single-phase , 2200mm Title: minimax fs 41es Surfacing-Thicknessing Planer w/ Xylent Spiralknife Cutterblock SKU: 90119 Model: minimax fs 41es Condition: New GeneralHorsepower:4.8hp Max. Workpiece Width:410 mm / 16.14" Max. Workpiece Thickness:240 mm / 9.45" Type:Xylent ElectricalVoltage:230volts Phase:Single-phase Made In: ITALY Dimensions: 3.64 (H) x 48.40 (W) x 86.60 (L) inches ** Combination machine of Planer, Jointer Xylent Spiralknife Cutterblock with 3 Series of Knives Complete With: - 95 mm diameter cutterblock - No. 66 standard knives, 15x15x2.5 mm with 4 self-locking and self-centering screw knives - No. 1 dynamometric key for the correct and safe use of the locking - No. 2 inserts for the dynamometric key Max. Stock Removal: 5 mm Surfacing Tables Total Length: 2200 mm Thicknessing Table Dimensions: 410 x 775 mm Feed Speeds on Thicknesser: 6 / 12 m/min Min. / Max. Working Height on Thicknesser: 3 / 240 mm Min. Working Length on Thicknesser: 180 mm Exhaust Hoods Diameter: 120 mm Standard Equipment - Surface planer tables with simultaneous opening - Dedicated surface planer fence (dimensions 1200 x 150 mm) - Thicknessing table lifting by means of 4 columns dust protected - Helicoidal thicknesser infeed roller - Sandblasted steel thicknesser outfeed roller - Pre-setting for mortiser - Mechanical readout (1/10 mm) for thicknessing table height Additional Features - Rubber-coated feed roller on thicknesser outfeed - Xylent maintenance kit - 10 spare inserts kit (15x15x2.5) for Xylent spindle - Wheels for machine movement - Self-braking motor - Triple Wall - Delivery Ex Factory [PDF Brochure](... Footprints](...
