Grove GMK5240

Nettó ár

Compnay LOGO
Images9
Grove GMK5240 Terepdaruk
Grove GMK5240 Terepdaruk
Grove GMK5240 Terepdaruk
FavoriteKedvenc
shareMegosztás
Save searchKeresés mentése
Nyomtatás

INFÓ

Termékcsalád
Terepdaruk
Márka / modell
Grove GMK5240
Gyártási év
2002
Telephely
Texas, USA, Texas
Ország
Egyesült Államok
Általános besorolás
1
2
3
4
5
Mascus ID
FD825A0B

ÁR

Pénznem kijelölése

TERMÉKLEÍRÁS

Raktári száma
932
Emelőteljesítmény
240 000 kg
Emelési magasság
6 005 cm
Mellékletek
https://freecranespecs.com/Grove/GMK5240
Egyéb információ

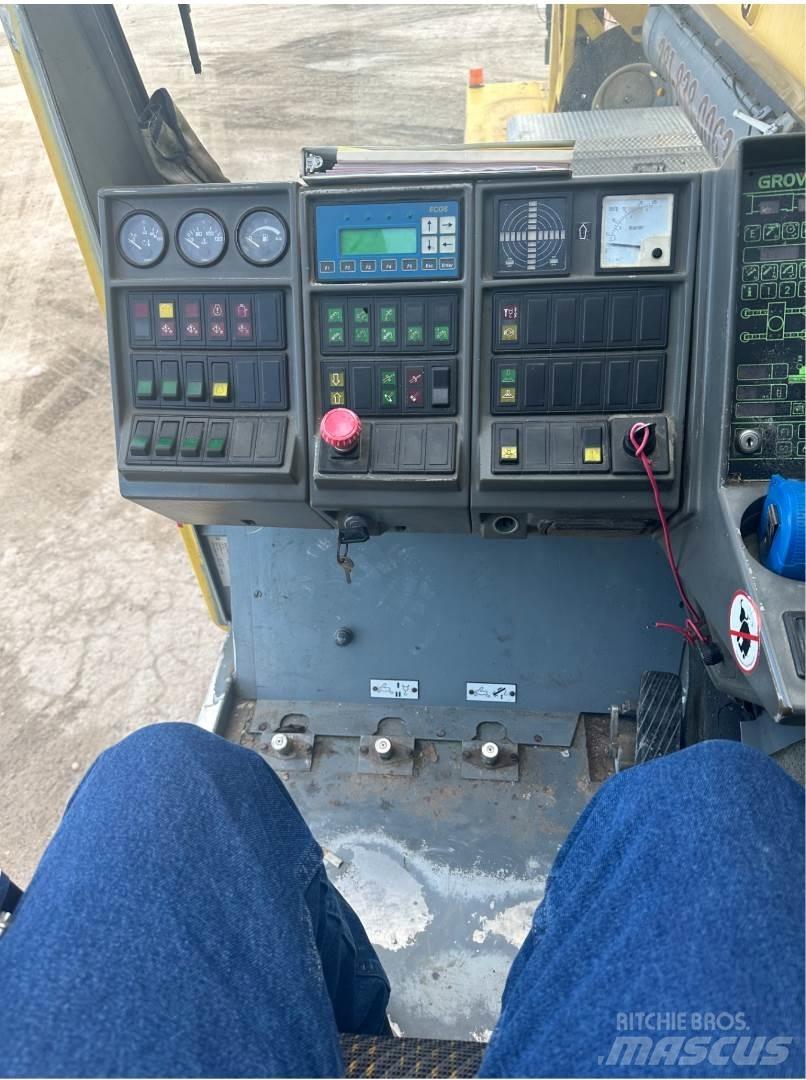

2002 Grove GMK 5240, 240 Ton All Terrain Crane; CranesList ID: 932, 44' - 197' Six section, Full-Power Boom with patented TWIN-LOCK boom pinning system with Auxiliary Lifting Sheave, 43' - 72’ Bi-fold Lattice Swing Away Extension (Jib) Hydraulically Off-settable (5° - 40°), 2 x 28' Jib inserts for a total of 125' of Jib, Cummins Diesel Engine (Up), Main and Auxiliary Winches with 22 mm Wire Rope 2 Speed, Grove EKS4 Load moment and anti-two block system with ECOS Operating System audio/visual warning and control lever lockout provides electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two- block condition, Headache Ball, 125 Ton, Five Sheave Hook Block, 154,300# of Counterweights with hydraulic removal system, Air Conditioning and Heater in both cabs, RECENT UPPER SERViCE & REPAIRS - new ecos in 2023 Hours 3432, telescope cylinder was done in 2020, boom lift cylinder was done in 2020, hydraulic hoses for hydraulic hose reel on side of boom were replaced in 2021, replaced wiring harnesses to left and right joysticks in 2022, lower part of seat was replaced 2023, jib wiring and plugs were all replaced in 2023, new fuel shut off solenoid in 2023, re-sealed hydraulic hose drum swivel for jib in 2023, new right arm rest in 2023, 10’ Wide, 5 Axle Grove Carrier, Cummins Diesel Engine (Down) with Constant Throttle Brake, Allison Automatic Transmission, Front and Rear Tires: 20.5R25, Tri Axle Dolly, Current 3rd Party Inspection - Kempco Inspection Services, RECENT LOWER SERViCE & REPAIRS - replaced front steer cylinder in 2022, re-sealed 3 steer cylinders in 2022, replaced all brakes on dolly in 2022, both carrier bearings replaced in 2022, transmission was replaced in August 2023, transmission cooler was removed and cleaned August 2023, replaced old hydraulic hoses around pumps in August 2023, new driveshaft from transmission to drop box in 2023, new planetary input seal and bearing replaced on rear passenger side wheel 2023, new cardon shaft on rear passenger side in 2023, replaced four tie rods on steering links in January 2024, replaced front passenger side suspension cylinder in June 2024, ... IN TEXAS! Mutasson többet

Craneslist

3350 E. 7th ST #512 90804 Long Beach California Egyesült Államok
