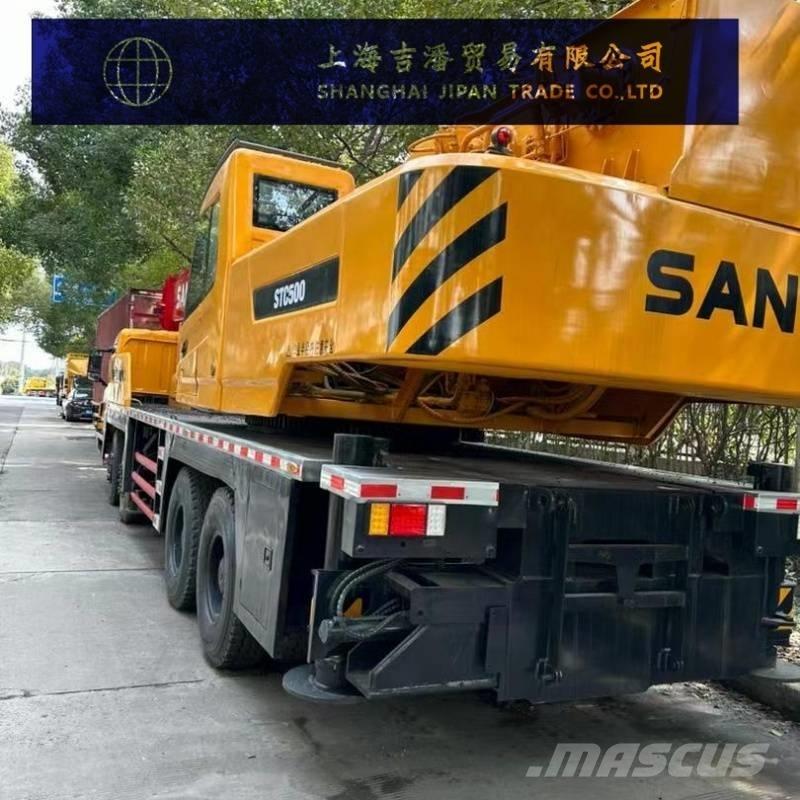

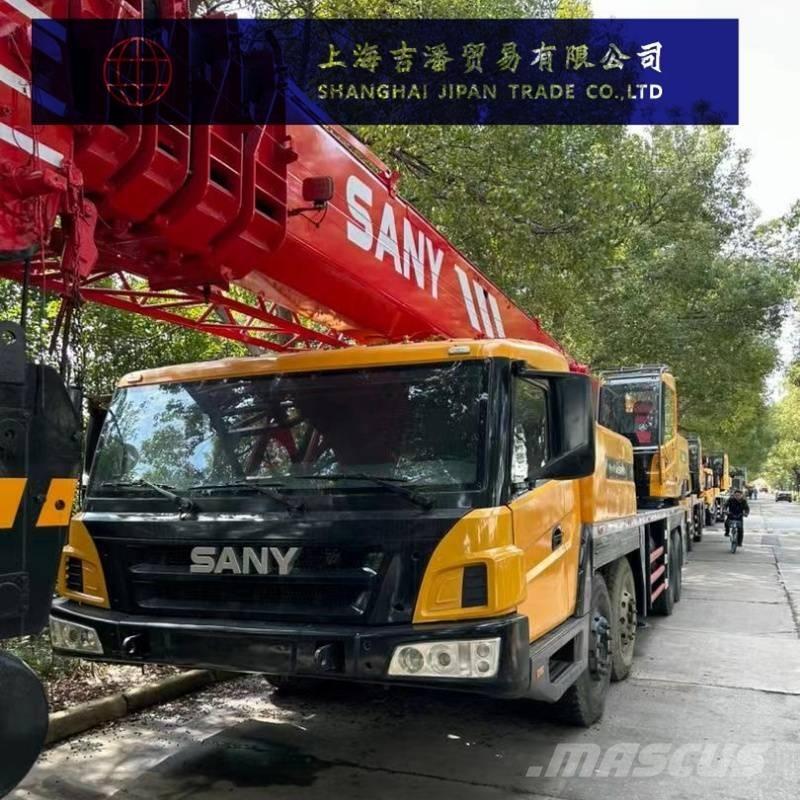

Sany STC 500

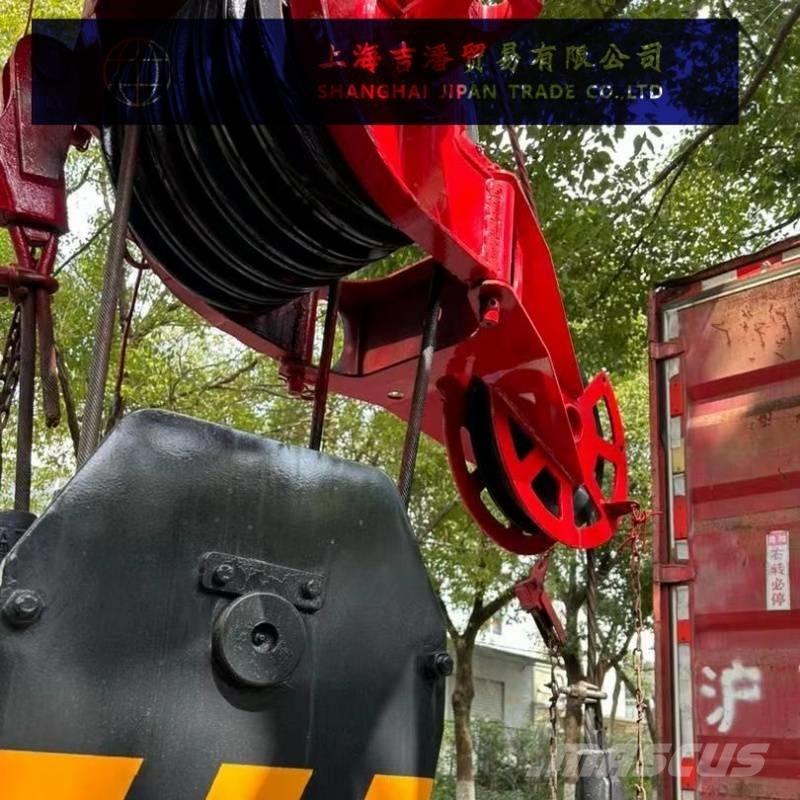

Fly Jib Hook Counter Weight We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.

Detailed parameters of Sany STC500 truck crane Main performance parameters Category: Truck crane Brand: Sany Maximum lifting capacity:55,000 kg Maximum lifting height (basic boom + auxiliary boom):58.8 meters Engine power: 235kw Engine brand: Shangchai Engine model: SC9DK320Q3 Rated engine speed: 2200r/min Maximum engine torque:1250/1400N.m Minimum rated amplitude: 3m Basic arm length:11.5 meters The maximum lifting moment of the basic boom is 1788.5kN.m The maximum lifting height of the basic boom is 12 meters The longest main arm/fully extended arm length:42.5 meters The maximum lifting moment of the longest main boom is 840.8kN.m The maximum lifting height of the longest main boom is 42.8 meters (Longest main arm + auxiliary arm) Length:58.5 meters The maximum lifting moment of the longest main boom + auxiliary boom:318 KN.m Distance from the center of rotation to the rear of the chassis: 3900mm Longitudinal outrigger span:7.2 meters The span of the transverse outriggers:6.2 meters Boom extension/retraction time:120/100 seconds The lifting/lowering time of the boom:80/60 seconds Horizontal outrigger extension/retraction time:38/20s Vertical outrigger extension/retraction time:35/15 seconds Main lifting speed (no-load/full-load, single rope):130m/min Auxiliary lifting speed (no-load/full-load, single rope):130m/min Rotational speed:2.4r/min Driving speed (high/low):76km/h Minimum turning radius:11,000 meters Minimum turning radius of the boom head:14,500 meters Minimum ground clearance: 243mm Approach Angle:17° Departure Angle:12° Braking distance:10 meters Maximum climbing ability:35% Fuel consumption per 100 kilometers: 45L/100km The overall mass of the machine in driving condition:42,000 kg Number of axes:4 Shaft load:1600/2600kg Wheelbase:1450/4000/1350mm Track:2255/2048mm Overall vehicle length:13,755mm Overall vehicle width:2750mm Overall height:3490mm
