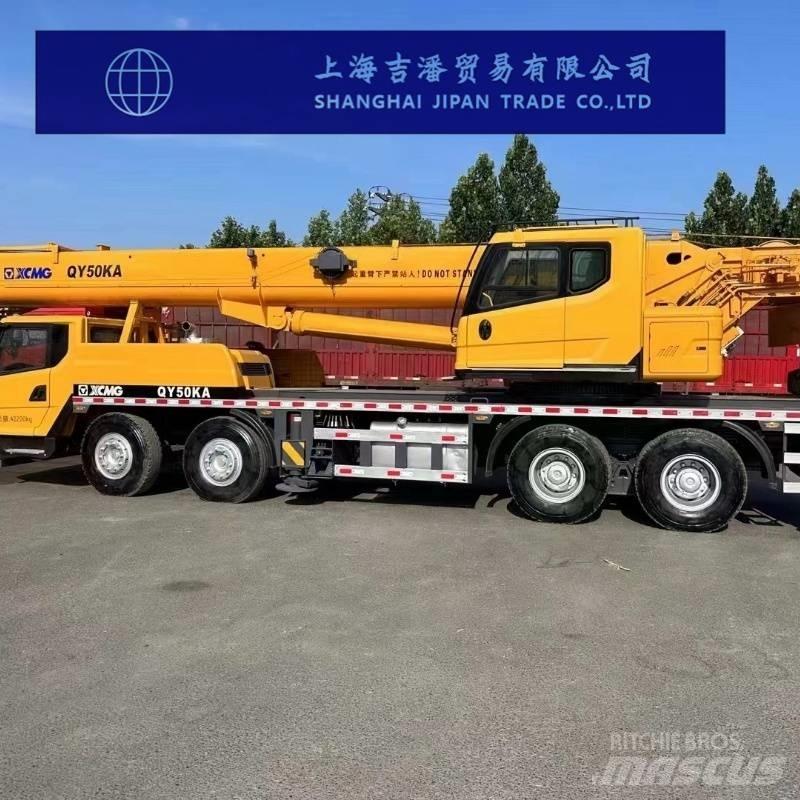

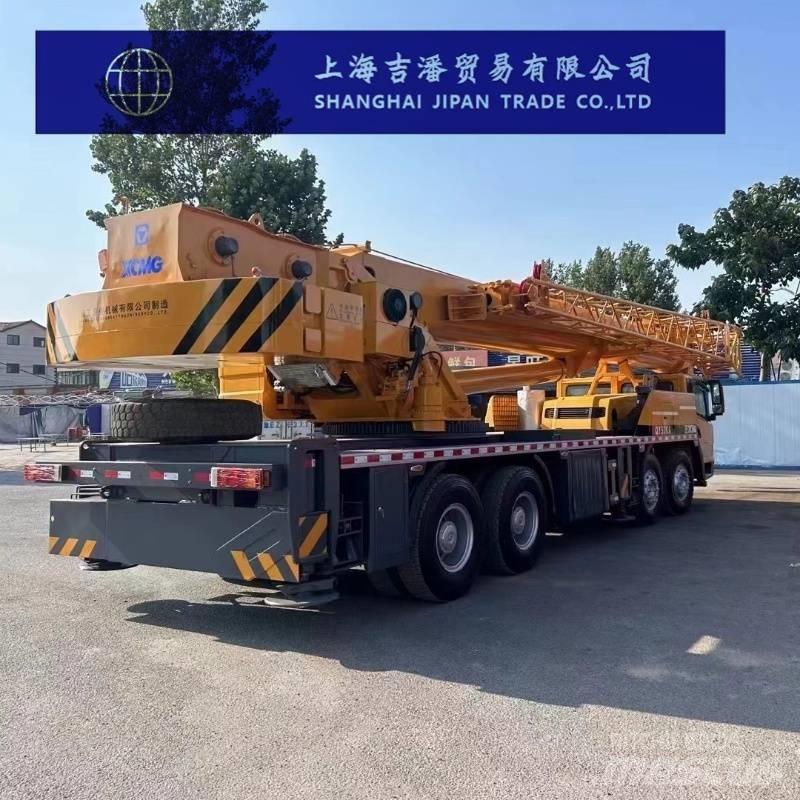

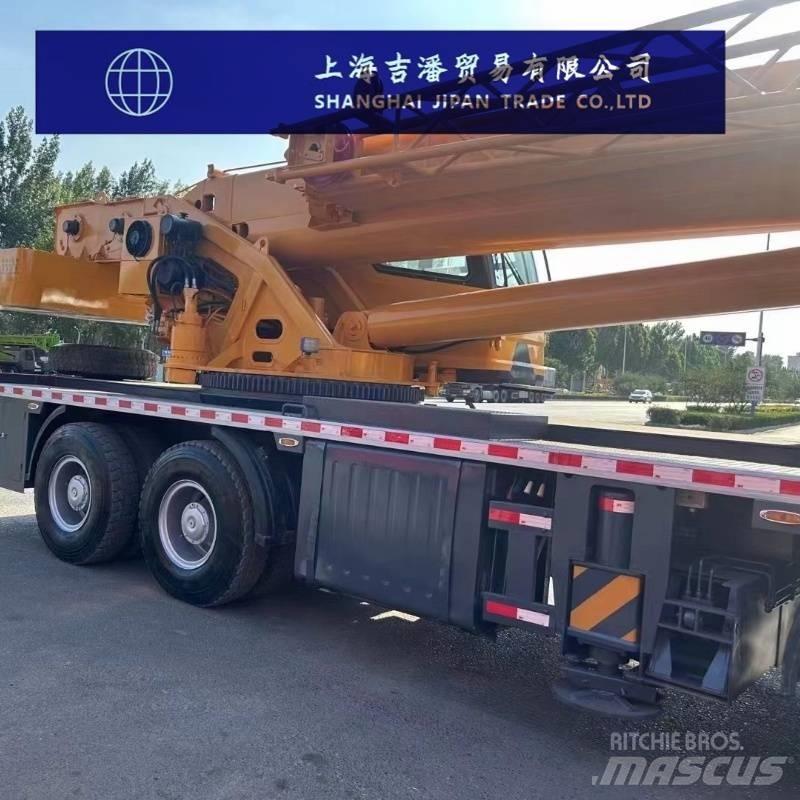

XCMG QY 50 KA
Nettó ár
Nyomtatás
INFÓ
Termékcsalád
Terepdaruk
Márka / modell
XCMG QY 50 KA
Gyártási év
2021
Üzemóra
2 000 h
Ország
Kína
Általános besorolás
1
2
3
4
5
Mascus ID
5EFFDCE7
ÁR
Pénznem kijelölése
TERMÉKLEÍRÁS
Raktári száma
1
Utolsó szemle
2025-07-10
Szériaszám
1
Előző tulajdonosok száma
1
Össztömeg
58 000 kg
Emelőteljesítmény
50 000 ton
Regisztrációs szám
1
Segédgém max.kilengési kapacitása.
50 000 ton
min gém hossz
14 m
Károsanyag kibocsátási osztály
EURO V
Rúd hossza
16 m
Min luffing jib
3 m
Gém(m/ft)
15 m
Segédgém hossza
15 m
Emelési magasság
44 m
Horog magasság - vízszintes segédgém
15 m
Horog magasság - billenő segédgém
14 m
Daru emelőmű
Benz
Emelő üzemóra
857 h
Daru típusa
Hidraulikus gém
Eredeti szín
Original
Ellensúly
14000
Daru mozgatómű
Original
Motor gyártója
Original
Szállítási méretek (HxSzxM)
12680 x 2500 x 3400 mm
Hordozó típus
Gumikerekes
Garancia
Good Condition
Abroncs márkája
米其林
Gumik állapota, elöl
98
Gumik állapota, hátul
2
Gyártó ország
Kína
Szállítási feltételek
FCA, FOB, CIF, EXW
Tanúsítványok
EPA, CE
Mellékletek
Fly Jib,Hook,Counter Weight,ETC.
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Tartozékok
Daru horog
Egyéb információ
Detailed parameters of XCMG QY50KA truck crane
Dimensional parameters
The overall length of the machine is 13,770mm
Overall width of the machine: 2800mm
Overall height of the machine: 3570mm
Wheelbase: 1470+4105+1350mm
Track: 2304/2304/2075/2075mm
Weight parameter
Total mass in driving condition: 42,000 kg
Axle load: Front axle 16,000 kg/rear axle 26,000 kg
Engine parameters
Engine type: D10.38 A - 40 / SC10E380. 1 q4 / WP10.375 E41
Rated engine power: 276/2200kW, 279/2200kW
Engine rated torque: 1500N·m/ (1100-1600) r/min, 1500N·m/1300r/min, 1480N·m/ (1200-1600) r/min
Driving parameters
Maximum driving speed: 80km/h
Minimum turning diameter: 24 meters
Minimum turning diameter of the boom head: 28.158 meters
Maximum climbing gradient: 40%
Minimum ground clearance: 327mm
Approach Angle: 17°
Departure Angle: 11°
Braking distance: ≤10 meters
Fuel consumption per 100 kilometers: 42 liters
Main performance parameters
Maximum rated total lifting capacity: 50 tons
Minimum rated amplitude: 3m
The maximum lifting moment of the basic boom is 1822kN·m
The turning radius at the tail of the turntable: 3482mm
Outrigger parameters
Longitudinal: 5.91m
Horizontal: 6.9m (4.7m)
Crane boom parameters
Main arm length: 11.3-42.7 meters
Auxiliary arm length: 9.2m or 16m
The maximum lifting height of the basic boom is 11.5 meters
The maximum lifting height of the longest main boom is 42.7 meters
The maximum lifting height of the longest main boom and auxiliary boom is 57.7 meters
Working speed parameter
Lifting speed - Main lifting mechanism: 85m/min when fully loaded, 130m/min when unloaded
Outrigger retraction and release - horizontal (simultaneously) : 20 seconds
