Country 700PRO/90DU

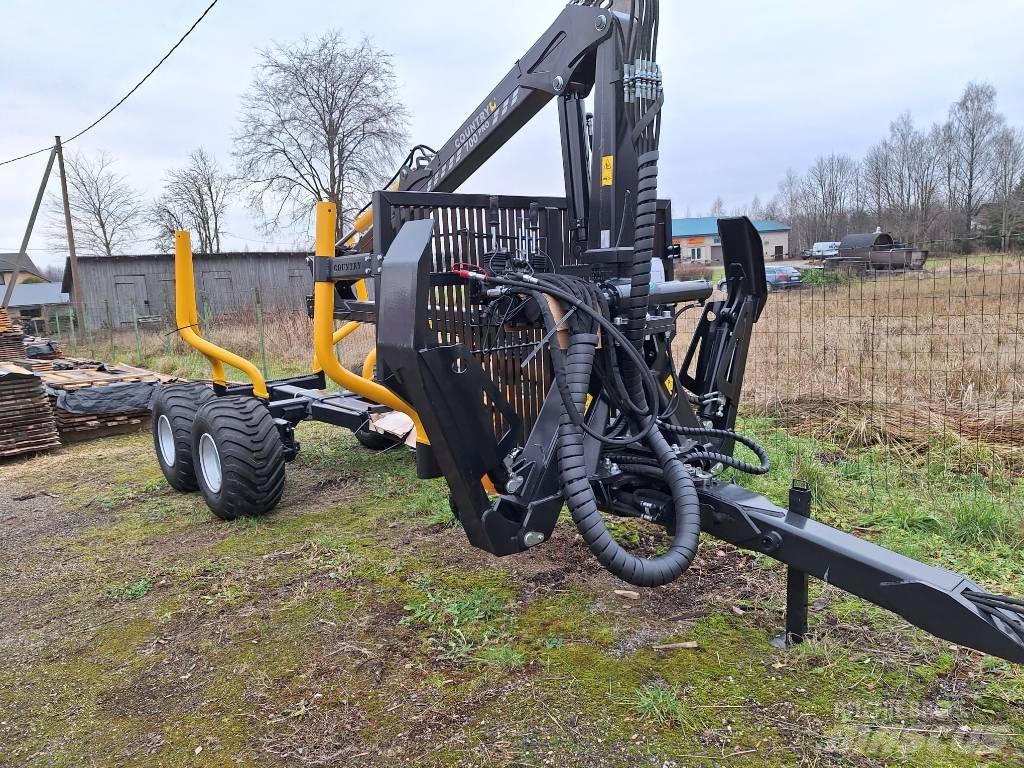

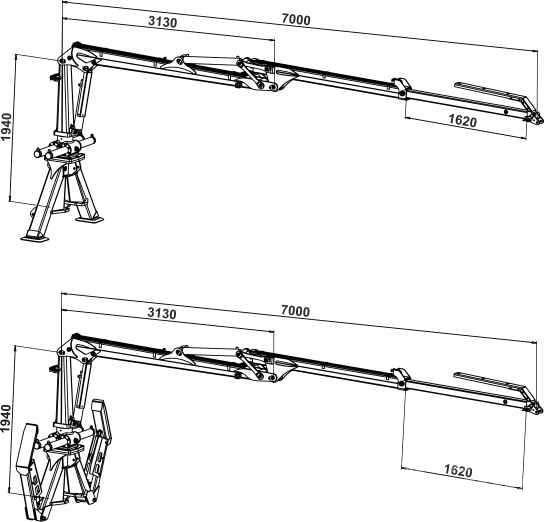

CRANE FPartner 700 PRO – Specifications: • Maximum reach: 7 m • Gross lifting torque: 50 kNm • Lifting capacity: o At 3.5 m – 1120 kg o At full reach – 560 kg • Rotation: o Torque – 15 kNm o Cylinders – 4 pcs. o Angle – 380° • Max axial load on rotator: 40 kN • Operating pressure: 190 bar • Weight (without support legs): 690 kg • Support legs compatibility: FD/A • Support legs weight: o Type A – 319 kg o Type FD – 338 kg • Compatible grapples: 0.22 / 0.22 PRO ________________________________________ TRAILER FPartner 90DU – Specifications: • Max load capacity: 9000 kg • Total length: 6200 mm • Width (standard wheels): 2150 mm • Cargo platform area: 2.1 m² • Cargo platform length: 3900 mm • Weight (without crane and wheels): 1610 kg • Standard wheels: 400/60-15.5 mm • Chassis: 2 (200×100) mm • Braking options: Hydraulic, pneumatic, or inertia brakes (optional) • Cylinder control: 2 pcs. ________________________________________ Included Equipment: • Grapple 0.22 (60) for 700 – For log handling • Trailer with three beam pairs – For transporting heavy logs • 700 Pro (ready for winch) + 4/8 on-off – Main control mechanism with winch compatibility • Forestry wheels 400/60-15.5 – For stability on rough terrain • Steering drawbar – Enhanced maneuverability • Dual brake link system – Ensures reliable braking under heavy loads • 700 FD-Type PRO support legs – Provides crane stability on uneven surfaces • Hydraulic brakes (2 pcs.) – For safe operation
