Ponsse Fox

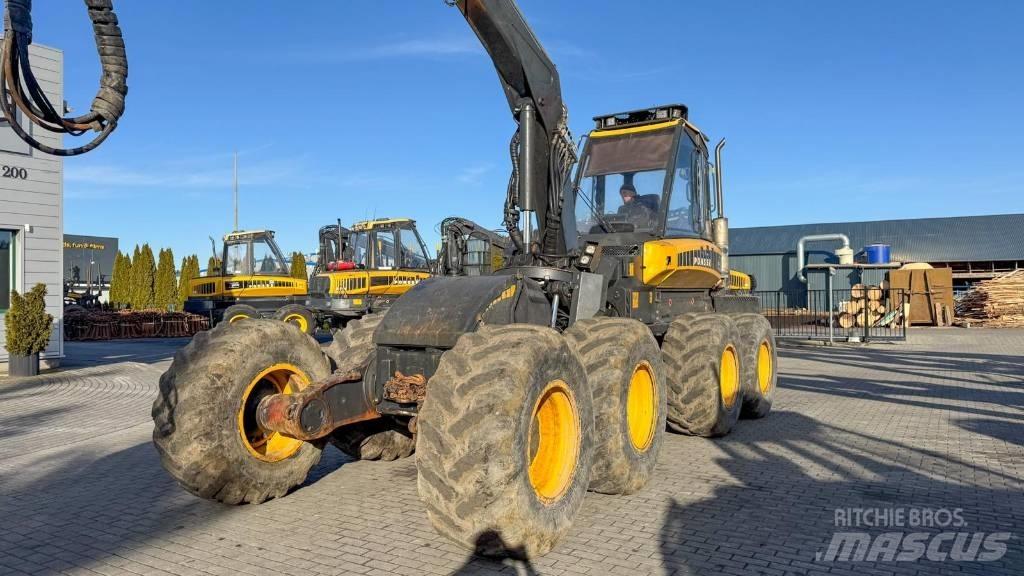

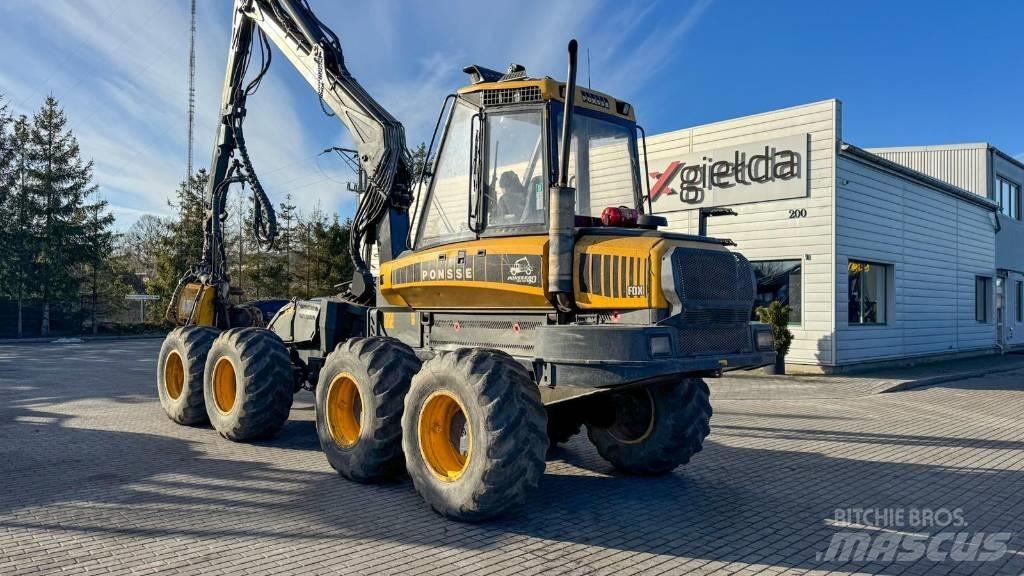

Ponsse Fox Harvester Year: 2010 Operating hours: 22,000 Harvester head: H6 Crane: C22 Machine after FULL SERVICE! Interested in the service details? Contact us and we'll send you a full service report in your language, along with photos! Cost of replaced parts: PLN 40,641 net Scope of work performed: Engine and fluids Changed engine oil and filters Replaced alternator pulleys and belt Replaced gearbox shaft seal and gearbox oil Bogies: fixed oil leaks, replaced cover seal and changed oil Hydraulics and drivetrain Checked and adjusted hydraulic system pressures; checked the working hydraulic pump using a pressure gauge Installed new hydraulic accumulators and replaced hydraulic filters Replaced damaged hydraulic hoses (machine, crane and harvester head) Fixed minor hydraulic leaks Replaced seals in the high/low speed shift cylinder Replaced spherical bearing and reconditioned steering cylinder pins Central lubrication system: topped up grease and replaced damaged hoses Crane and harvester head Complete overhaul of the H6 harvester head Reconditioned upper and lower delimbing knife cylinders (new pistons and piston rods) and replaced pin bearings Reconditioned saw cylinder and replaced saw seal Reconditioned feed roller cylinder and replaced seals in the inner feed roller motors Installed new expanding pins on the outer feed rollers and replaced bearings Replaced the main valve in the harvester head valve block Reconditioned CT+, installed missing rotary coupling and diameter measurement sensor Reconditioned crane articulation cylinder and replaced 2 spherical bearings Reconditioned harvester head suspension and replaced its mounting Replaced crane pillar sensor (limit sensor) Electrical system Installed two new alternators Repaired driving lights and replaced five lamps Installed a new battery cable Replaced windshield washer and differential lock buttons Cab Installed a new front windshield, resealed the door window and emergency exit window Replaced left joystick control panel and "banana" control panel Installed new wiper blades and right-side wiper motor; repaired wiper housing Checked air conditioning Replaced heating control potentiometer
