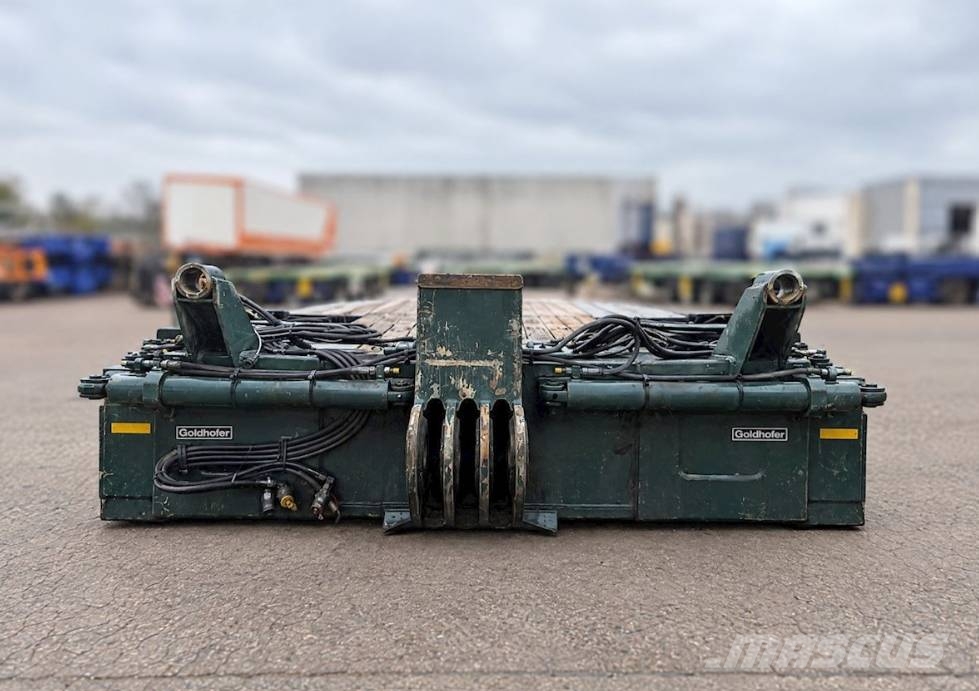

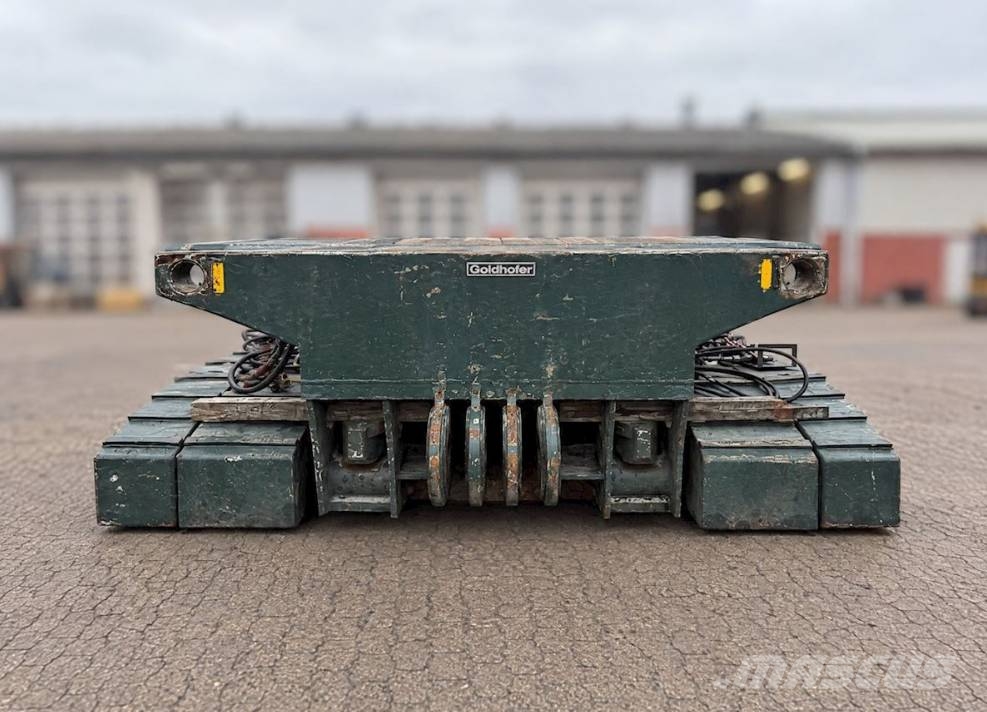

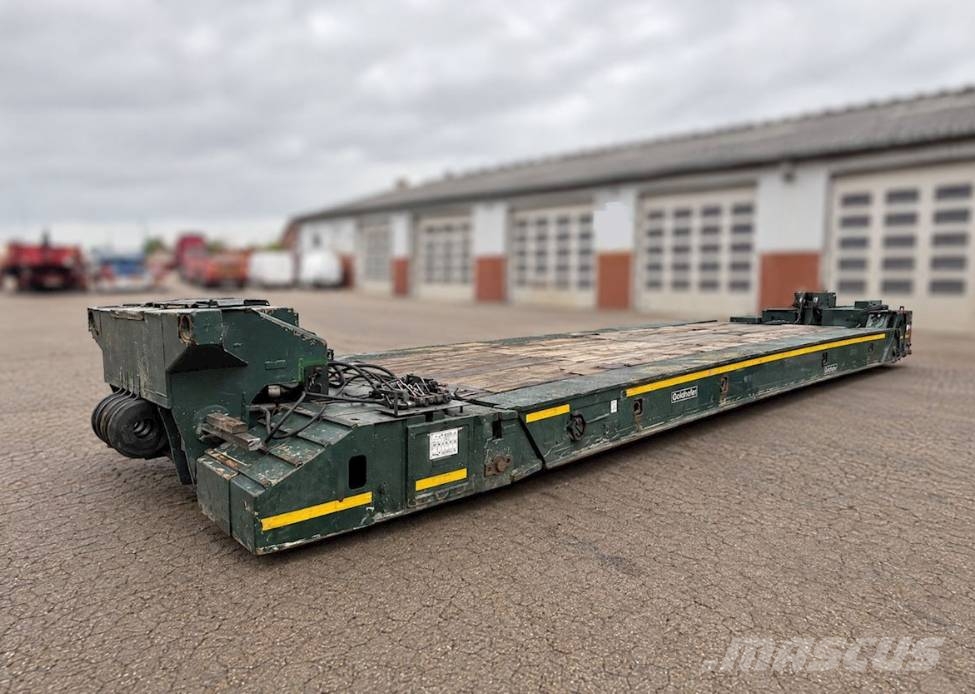

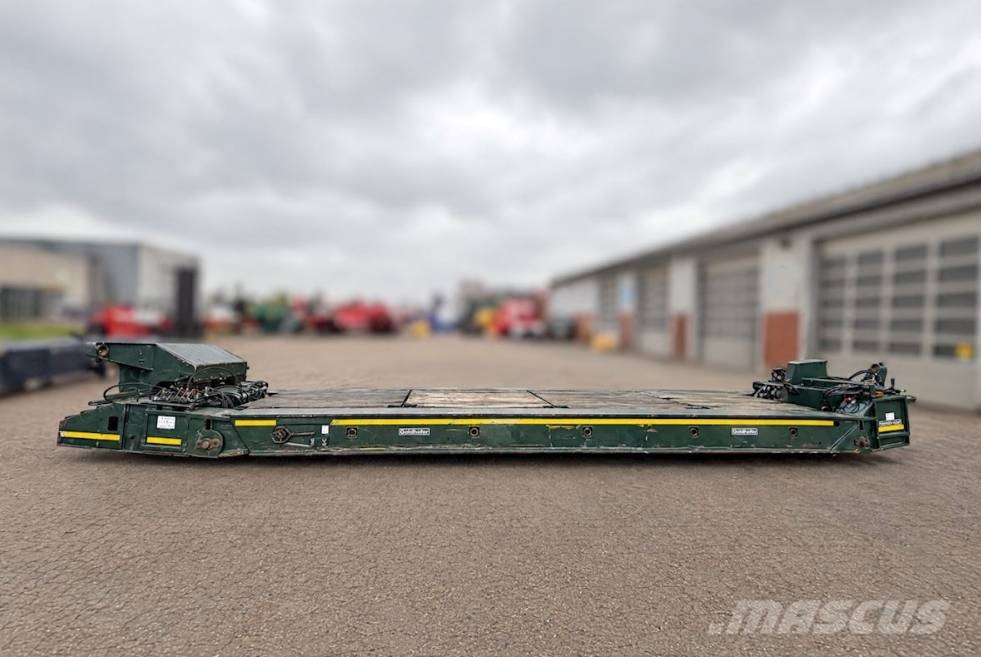

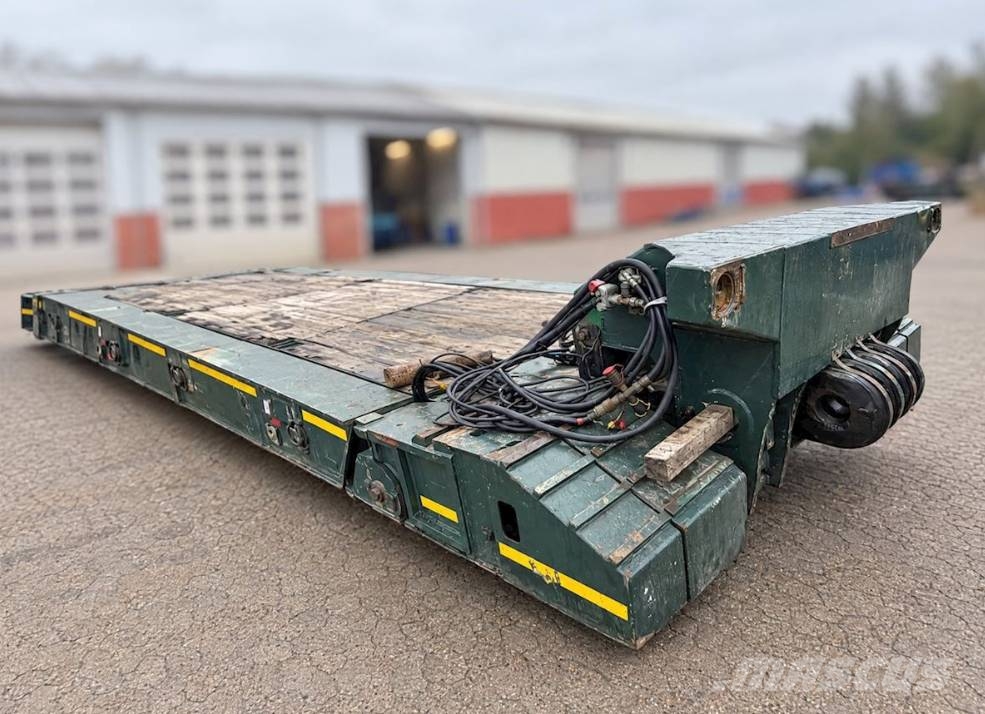

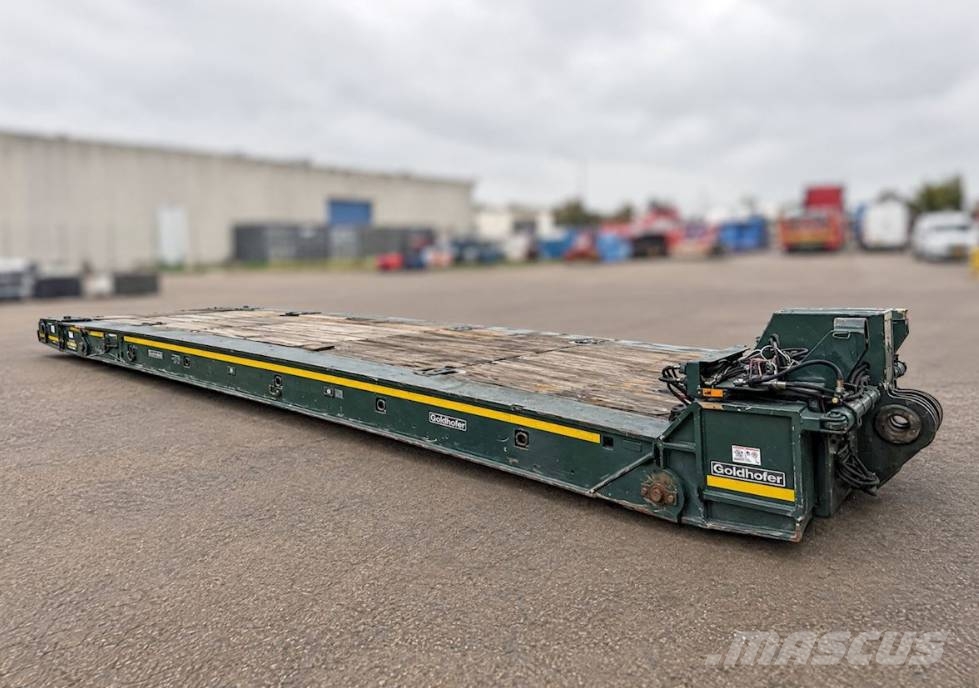

Goldhofer KB 450 A (vessel deck)

Goldhofer KB 450 A Year: 2019 Vessel deck for coupling Goldhofer THP SL modular lines. Designed for transporting tanks, boilers, reactors, and other large, heavy cargo with low overall height. Specifications - Manufacturer: Goldhofer AG, Memmingen - Payload: 100,000 kg - Empty weight: 17,600 kg - Coupling length: 10,230–15,230 mm - Longitudinal beams: 8,000–13,000 mm (telescoping) - Width: 2,990–4,690 mm (extendable) - Beam height: 450 mm - Height at the coupling heads: 1,103 mm Features - Telescoping longitudinal beams - Front and rear cross tubes with modular couplings - 4 shelves - 4 drum supports - Lashing points: 13,400 daN -More details upon request-
