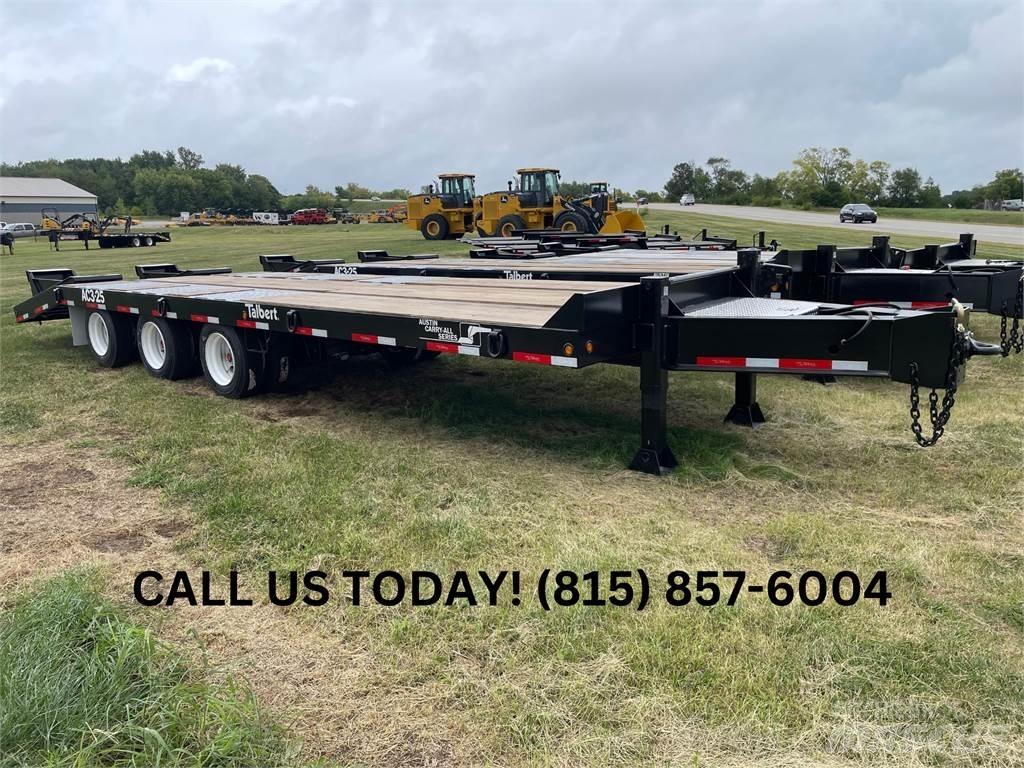

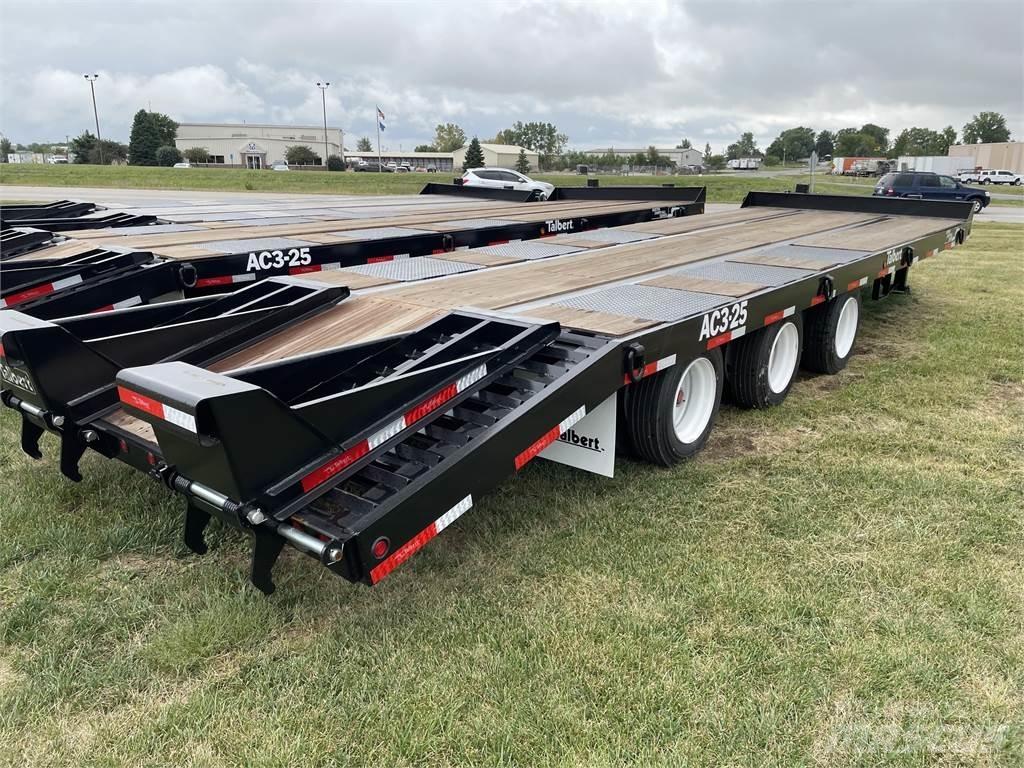

Talbert AC3-25

Pintle Hitch; Air Brakes, Air Suspension, Spring Suspension; 25 Ton; TAG Pintle Eye: Adjustable Pintle Eye (3” ID) w/ 48” Chain & Grab Hooks; Tongue: 5’6” w/ Lockable Toolbox; Landing Gear: 2-Speed, 50,000 LB Crank Down Dual Landing Leg, Mounted to Main Beams & Headboard; Electrical Receptacle: Seven Pin Connector; Headboard: 8” High Full Width; Deck Section Design: One Piece Tongue, Main Beam & Beavertail (Cold Formed); Deck Section Length: 29’ (24’ Flat w/ 5’ Beavertail); Deck Section Width: 8’6”; Loaded Deck Height: 32.75”; Lash Rings: 4 Each Side; Beavertail: 5’ Self-Cleaning Design w/ Traction Bars (Lumber between Main Beams); Ramps: Self-Cleaning w/ Spring Assist & Gripper Bars; Number of Axles: 3; Axle Capacity: 25,000 LB; Brakes: 12.25” X 7.5” Air w/ 2S1M ABS, Spring Brakes on Axles 2 & 3; Tires: Twelve 215/75R17.5 (H) 16PR Radials; Suspension: First Axle Air Ride Equipped w/ Air Lift Axle, 44,800 ...
