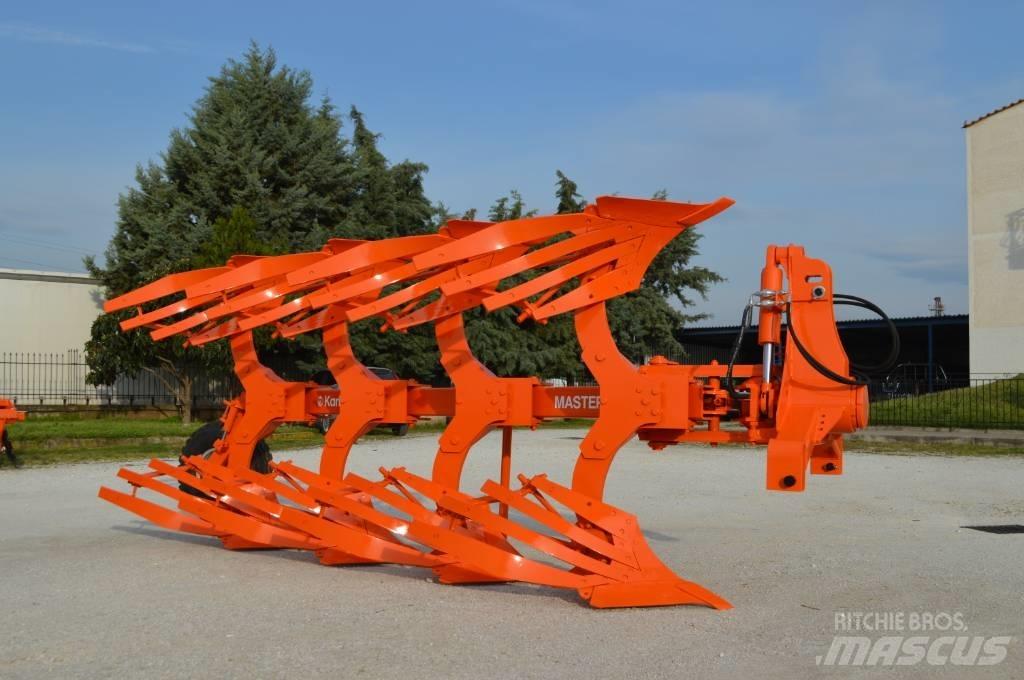

Kariotakis MASTER

Skim boards

- Link attachment three points with the tractor - Hydraulic cylinder double acting for rotation - Main frame from double steel frame 150Χ100Χ10+120Χ80Χ8 - Possibility of construction with arm extension 3, 3+1,4,4+1 - Adjusting the first furrow share - Splitted mouldboard Μ12 ( you can choose K28 & K30) - Share with Reversible point - Turbo-Trashboards - Moldboard extension ( for M12 & K28) - Coulter knife at the last body - Hydraulic adjustment of the working width - Distance between furrows 95cm or 102cm - Underframe clearance 76cm or 81cm - Rotation axis for 3 shares Ø130mm, for 4 shares Ø 170mm, for 5 shares Ø 170mm - Safety bolt - Elastic wheel 10/0.80-12 5F 10PR *The working width can be Hydraulicaly or Mechanicaly The KK2000 ploughs can be built from 3-5 shares from 80-200 HP
